Program Overview
Smartwin Manufacturing Technology provides direct drive transmission solutions for processes such as UV advertising, direct-to-garment printing, packaging and book printing, and general printing.
Fully Automatic UV Digital Printing Machine Application Case
Large Format UV Printing Equipment Application Case

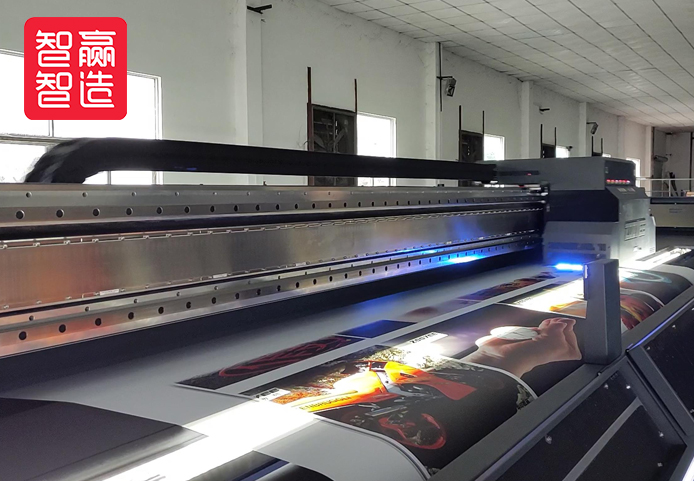

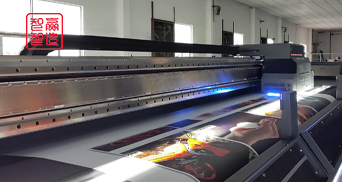

Fully Automatic UV Digital Printing Machine Application Case
Solution Features: The structure utilizes smartwin linear motors, offering low noise, high speed, and high precision. Particularly during high-speed movement, the device produces minimal vibration, ensuring improved print quality.
Industry: Digital Printing
Equipment Name: Fully Automatic UV Digital Printing Machine
Industry Application: Printing on flexible materials such as light cloth, vehicle decals, wall fabric, and other soft films
Operating Environment: 20-28°C
Structure: Aluminum profile beam
Configuration Description: KYFS2100 series linear motors, THK rails
Download Product Manual
Service Support
Call:+86 400 807 1566 Related parameters

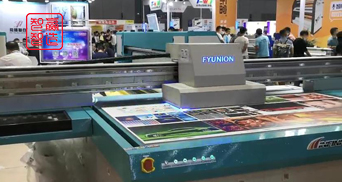

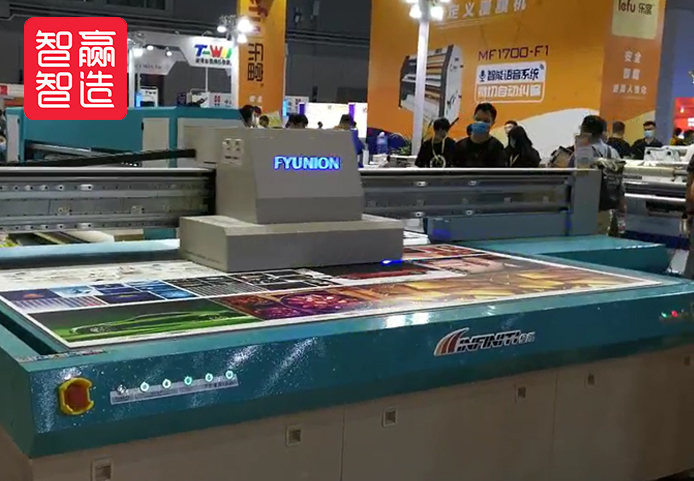

Large Format UV Printing Equipment Application Case
Solution Features:Linear Motor Structure: The use of linear motors enables infinite tiling, meeting the requirements for long strokes, and eliminates backlash in the transmission components.Magnetic Grating Encoder: The integration of a magnetic grating encoder enhances feedback precision, resulting in more vivid and accurate print colors.Increased Speed: The improved speed increases the printing efficiency by 30%, leading to faster production and reduced turnaround times.
Industry: Digital Printing
Equipment Name: Large Format UV Printing Equipment
Industry Application: Advertising, decoration, and other material printing
Operating Environment: Ambient temperature workshop
Structure: Steel frame beam
Configuration Description: KYFS2200 series motor, Smartwin magnetic grating encoder, Rexroth rails, Smartwin driver
