Solution Features: The dual-actor linear motor structure allows for interactive motion of the actuators, saving space and improving production efficiency. The use of a grating scale for position feedback enhances positioning accuracy, leading to improved yield. By directly adopting the standard module from Zhiwin, the solution enables modularized and fast production, shortening the assembly cycle and meeting high-volume delivery demands

Industry: 3C Assembly

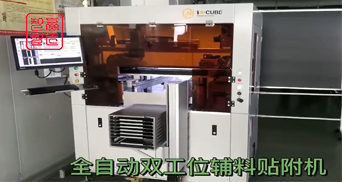

Equipment Name: Full Automatic Dual-Station Auxiliary Material Attachment Machine
Industry Application: Attachment of auxiliary materials to camera modules and fingerprint modules
Operating Environment: Constant temperature workshop
Structure: Dual-Actuator Standard Module Structure
Configuration: CFB065 series motor, Smartwin encoder, THK rails, Smartwin driver.

Download Product Manual Service Support

Call:+86 400 807 1566

Solution Features: The equipment adopts a three-actuator linear motor structure, enabling interactive movement between the actuators. This design saves space and improves production efficiency. The use of grating scales for position feedback enhances positioning accuracy, which in turn improves the yield rate. The direct use of Smartwin’s standard modules allows for modular and rapid production, reducing the assembly cycle and ensuring the capability to meet large-volume delivery requirements.

Industry: 3C Assembly
Equipment Name: Full Automatic Auxiliary Material Molding Machine
Industry Application: BGA-type steel sheet placement
Operating Environment: Ambient temperature workshop
Structure: Three-Actuator Standard Module
Configuration: KYFS2000 series motor, Smartwin encoder, THK rails, Smartwin driver

Download Product Manual Service Support

Call:+86 400 807 1566

Solution Features:The structure of the dual-armed motor allows independent control, saving space and improving the production efficiency of the equipment.

Industry: 3C Assembly

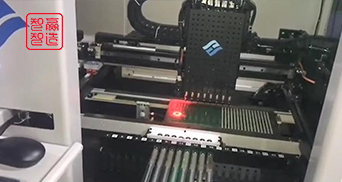

Equipment Name: Dual-Arm Fully Automatic LED Placement Machine
Industry Application: LED chip placement
Operating Environment: Ambient temperature workshop
Structure: Dual-Arm Cast Iron Structure
Configuration: CFB075 Series Linear Motors, Smartwin Encoder, THK Rails, Smartwin Drivers

Download Product Manual Service Support

Call:+86 400 807 1566

Solution Features: The L-shaped structure with a special design saves space and reduces weight, improving the operating speed. The beam is made of 7-series aluminum alloy, enhancing the stability of the equipment. The use of CFB series linear motors increases the production yield of the equipment.

Industry: 3C Assembly
Equipment Name: Gantry Single-Drive Fully Automatic LED Pick and Place Machine
Industry Application: LED Chip Placement
Operating Environment: Standard temperature workshop
Structure: Gantry single-drive die-cast aluminum structure
Configuration Description: CFB095 series linear motor, Smartwin encoder, THK rails, Smartwin driver

Download Product Manual Service Support

Call:+86 400 807 1566

Solution Features: The marble structure with a unique modular design utilizes a multi-actuator linear motor structure, saving equipment space and improving production efficiency. The use of linear motors for Z-axis torque feedback enhances the machine’s production yield to over 99%.

Industry: 3C Assembly
Equipment Name: Fully Automatic Camera Module Laminating Machine
Industry Application: Camera Module Assembly
Operating Environment: Constant temperature workshop
Structure: Multi-actuator marble customized structure
Configuration Description: CFB065 series motors, Smartwin encoder, THK rails, Smartwin driver

Download Product Manual Service Support

Call:+86 400 807 1566
