Program Overview
Smartwin Manufacturing Technology provides direct drive transmission solutions for processes such as sapphire, wafer, and ceramic precision cutting, as well as ITO silver paste laser etching machines.
Laser Micro Machine Application Case
Glass Laser Cutting Machine Application Case
Cover Film Laser Cutting Machine Application Solution
Large-format Laser Etching Machine Application Solution
Full-Screen Irregular Shape Laser Cutting Machine Application Case

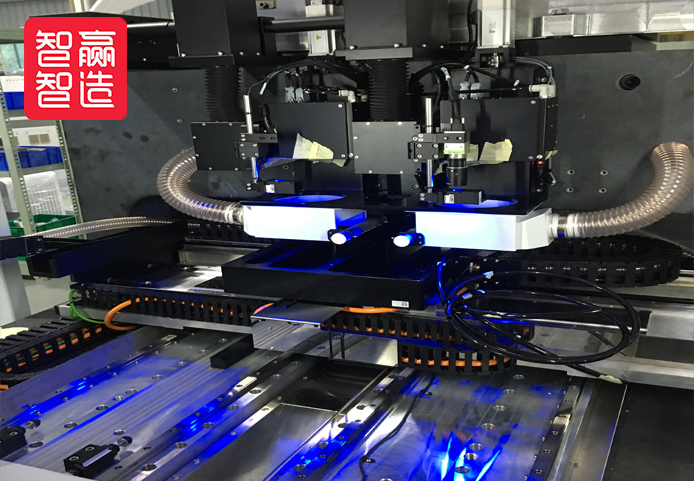

Laser Micro Machine Application Case
Solution Features:The base platform is assembled with four guide rails, enhancing the stability of the equipment during operation.The customized SMARTWIN linear motors offer high thrust and stability, achieving splicing accuracy of < ±3 μm.
Industry: Laser Industry
Equipment Name: Laser Micro Machine
Industry Application: Drilling processes for products such as chip inductors, ceramic materials, semiconductor microelectronics TSV, and engine fuel injectors
Operating Environment: Constant Temperature Workshop
Structure: XY-Cross Overlay Structure
Configuration Description: Smartwin customized linear motors, Heidenhain absolute encoders, Rexroth guide rails, ELMO drivers
Download Product Manual
Service Support
Call:+86 400 807 1566 Related parameters

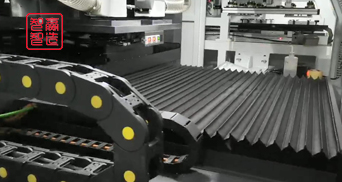

Glass Laser Cutting Machine Application Case
Solution Features:The dual-Y structure enables automatic loading and unloading for efficient processing and production, enhancing production efficiency.The use of a coreless linear motor with circular interpolation functionality ensures smooth cutting surfaces for curved and L-shaped corners.
Industry: Laser Industry
Equipment Name: Glass Laser Cutting Machine
Industry Application: Cutting of sapphire, optical glass, and semiconductor materials
Operating Environment: Constant Temperature Workshop
Structure: Dual-Y Fixed Beam Gantry Structure
Configuration Description: KYAC3000 series motors, Smartwin encoders, Smartwin drivers, THK guide rails
Related parameters

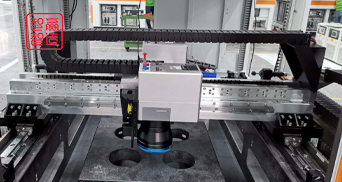

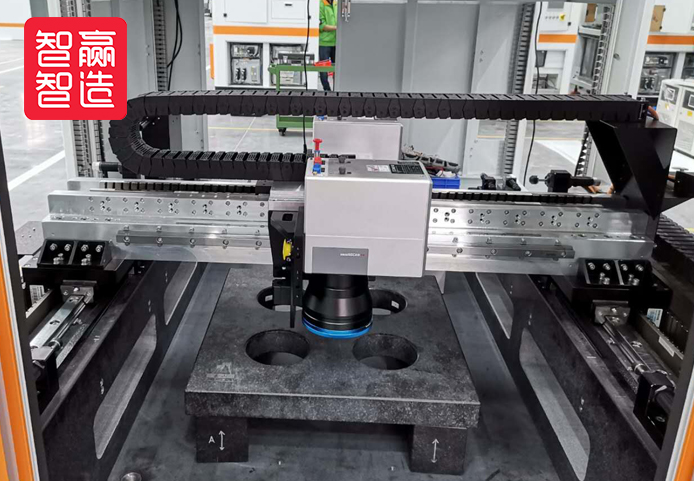

Cover Film Laser Cutting Machine Application Solution
Solution Features:The dual-drive gantry marble structure offers high precision and excellent stability.With a cutting speed of up to 2m/s, production efficiency is increased by three times.
Industry: Laser Industry
Equipment Name: Cover Film Laser Cutting Machine
Industry Application: Drilling and cutting of products such as FPC, FPC rolls, and copper foil
Operating Environment: Constant Temperature Workshop
Structure: Dual-Drive Gantry Marble Structure
Configuration Description: Smartwin customized linear motors, RSF encoders, Rexroth guide rails, ELMO drivers
Related parameters

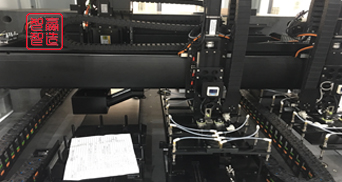

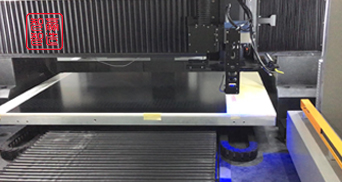

Large-format Laser Etching Machine Application Solution
Solution Features:The marble gantry structure enhances the overall stability of the equipment.The use of linear motors improves motion precision, achieving etching line widths of 20 microns and splicing accuracy of < ±5 microns, increasing product yield to over 98%.
Industry: Laser Industry
Equipment Name: Large-format Laser Etching Machine
Industry Application: Etching processes for products such as 100-inch ultra-large-size industrial teaching resistors, capacitive touchscreens with silver paste, ITO, solar photovoltaic products, and more
Operating Environment: Constant Temperature Workshop
Structure: Fixed Beam Gantry Marble Structure
Configuration Description: CFH125 series motors, Smartwin drivers, Rexroth guide rails, Smartwin drivers
Related parameters

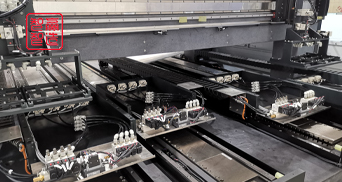

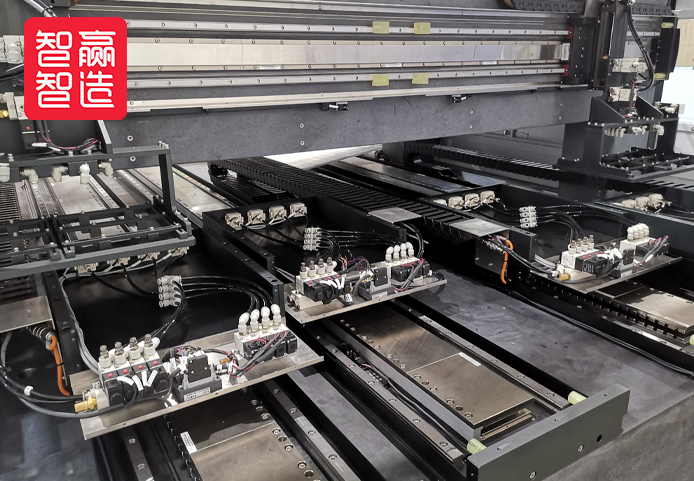

Full-Screen Irregular Shape Laser Cutting Machine Application Case
Solution Features:The four-channel structure enables automatic loading and unloading, improving production efficiency.The use of ironless linear motors, combined with ACS motion control for circular interpolation, achieves a trajectory with a ±1 micron speed fluctuation, increasing product yield.The overall equipment configuration ensures a tapered-free cutting requirement, enhancing the cutting process across the industry.
Industry: Laser Industry
Equipment Name: Full-Screen Irregular Laser Cutting Machine
Industry Application: Cutting of R-angles and C-angles for mobile phone panels, automotive panels, and other applications
Operating Environment: Constant Temperature Workshop
Structure: Four-Channel Fixed Beam Gantry Marble Structure
Configuration Description: KYAC4000 Series Motors, RSF Encoders, Rexroth Rails, ACS Motion Controller
