Torque Motor DDA
The torque motor rotor is directly connected to the load, eliminating errors caused by intermediate components, achieving ideal control accuracy. The torque motor has strong rigidity, and direct connection to the load allows greater rigidity to be effectively transferred to the load.
Large-sized hollow inner diameter
Directly connected to the load can reduce errors, achieving ideal control accuracy
Gearless wear
Low cogging effect, smooth operation at low speeds
Backlash-free with high rigidity
Zero backlash and load compliance, high rigidity with crossed roller bearings, enhancing system
Integrated encoder
Equipped with a high-resolution encoder and using a direct connection method can reduce positioning errors caused by the mechanical structure.

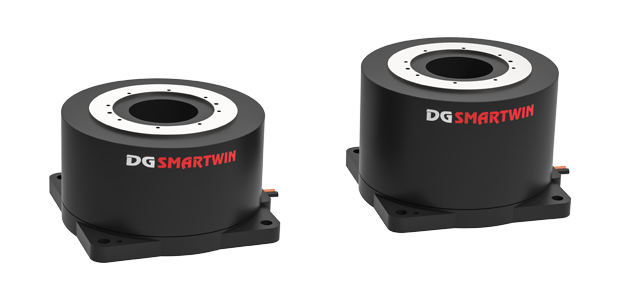

Continuous Torque (N·m) 3
Peak Torque (N·m) 9

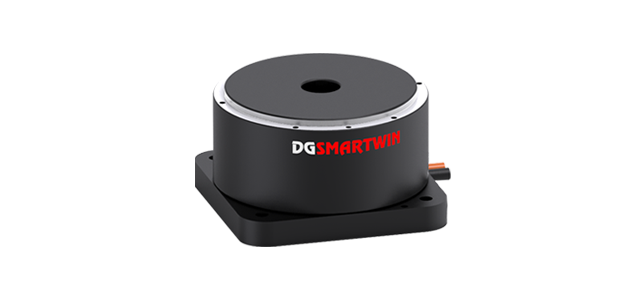

Continuous Torque (N·m) 5.3~11.0
Peak Torque (N·m) 15~31

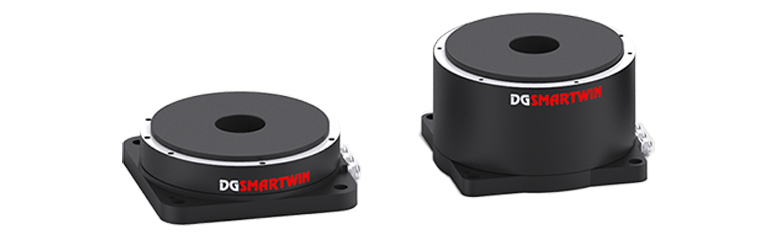

Continuous Torque (N·m) 6~23.8
Peak Torque (N·m) 18~71

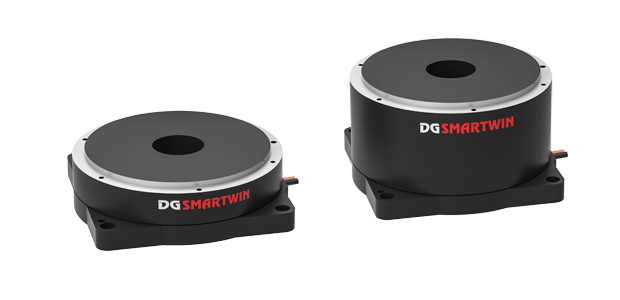

Continuous Torque (N·m) 74~99
Peak Torque (N·m) 212~285

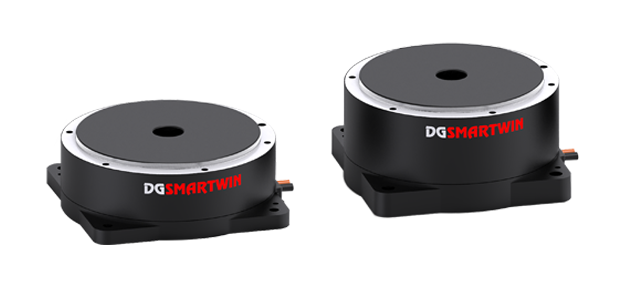

Continuous Torque（N.m） 75~100
Peak Torque（N.m） 150~200
