DDA140

DDA140

Features

  • Direct Drive Brushless Motor
  • Low Cogging Effect
  • Large Hollow Inner Diameter
  • High Speed, High Response
  • Integrated Encoder

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DDA
Peak Torque (N·m)
  • DDA
140
Motor Diameter
  • 140：140mm
050
Motor Height
  • 050：50mm
  • 080：80mm
A
Winding Code
  • *Standard Winding
    "Unmarked"
  • A, B, C, D, etc.
KN71
Encoder Code
  • KN71:Single-turn Absolute Value (Domestic)
LA05
Lead Length
  • LA05: 0.5 Meter Lead (4x22 AWG)，
    Compatible with 16M-4K Connector
P50
Runou
  • P5
  • P50
01
Customization
  • 1
    • *Standard Type
      "Unmarked"
Parameter configuration
Motor Model DDA140-050 DDA140-080 DDA140-110 DDA140-140
Motor Length (H) 50 80
Center Hole Diameter (mm) 30 30
Continuous Torque (N·m) 5.3 11
Peak Torque (N·m) 15 31

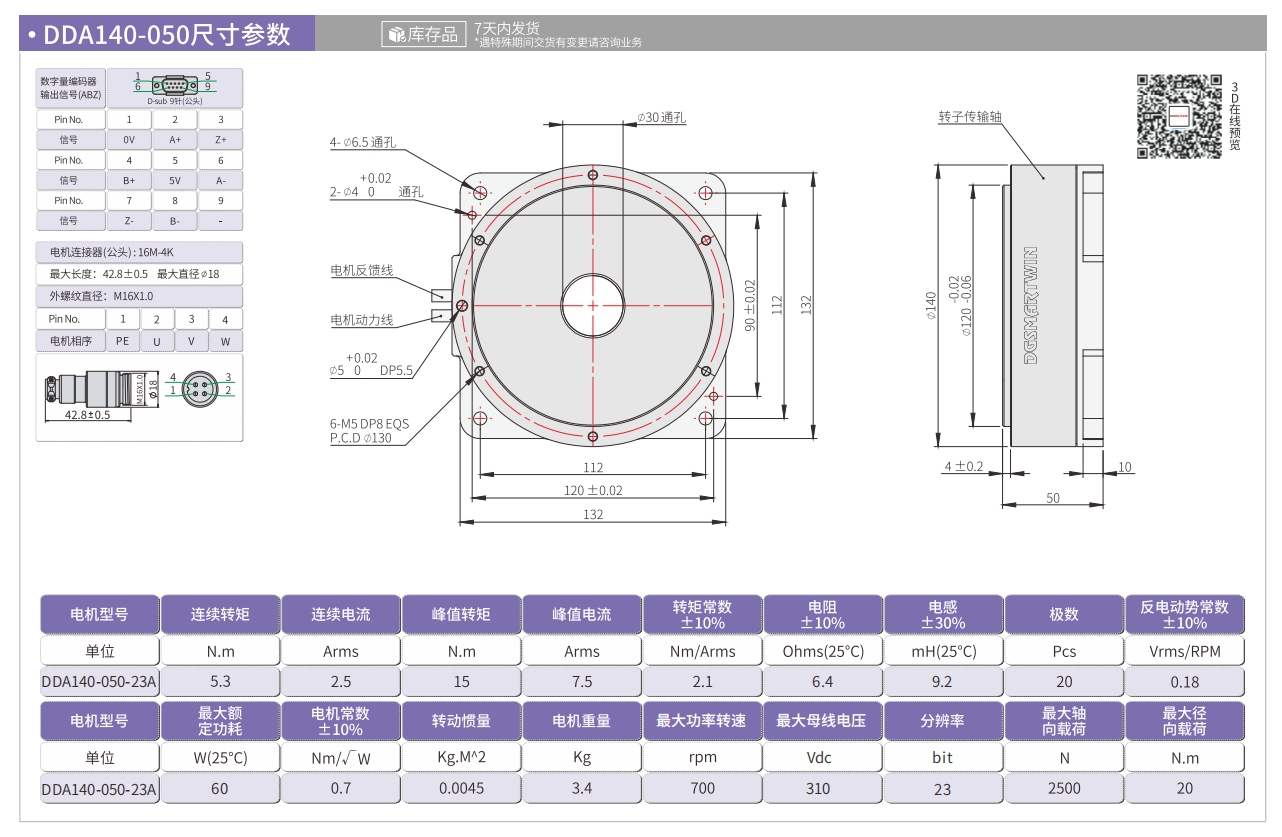

DDA140-050

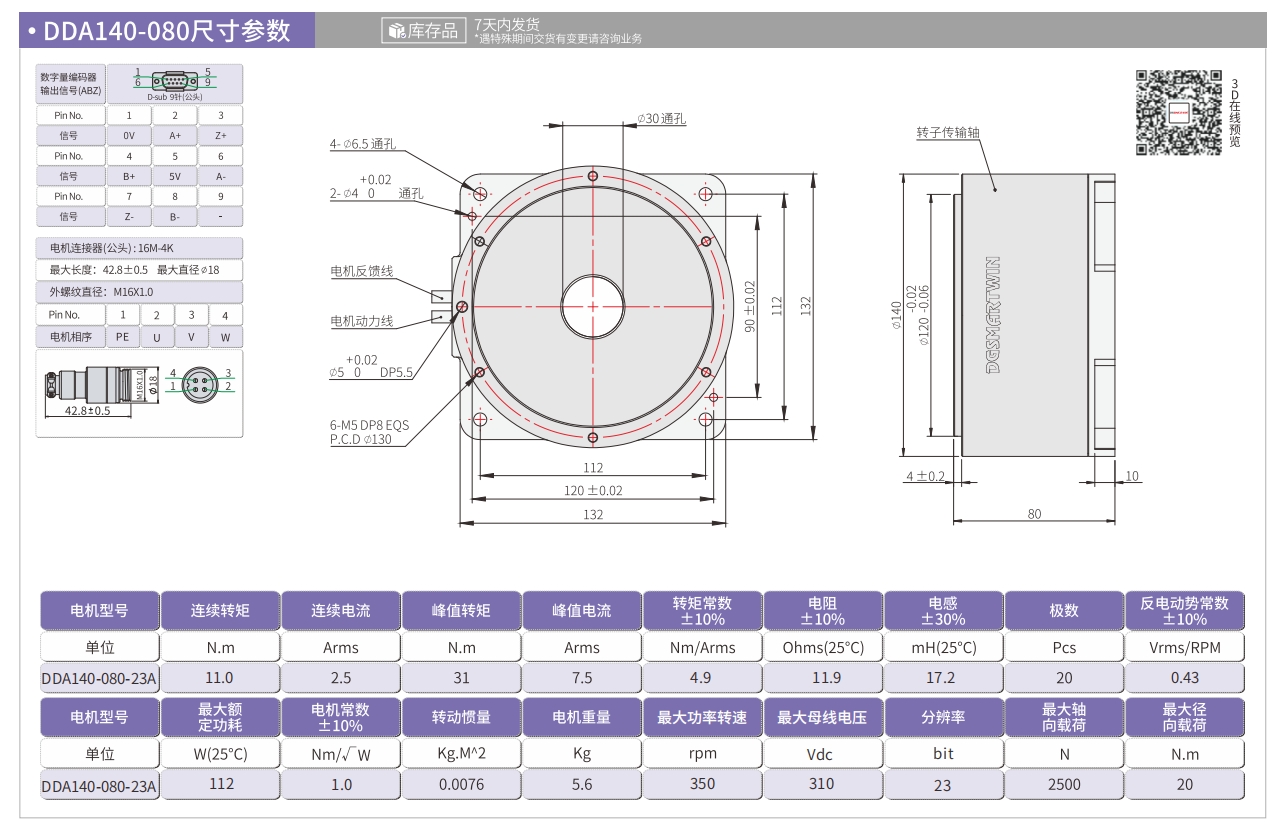

DDA140-080
DDA140-050
DDA140-080
