Home Frame-less Direct Drive Motor DBM DBM25
DBM25

DBM25

Features

  • Low cogging torque
  • High torque density
  • Low speed ripple
  • High acceleration
  • Standard high-voltage insulation

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry Precision Laser Processing Industry Precision Testing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DBM
Series
  • DBM
25
Motor Diameter
  • 25：110mm
01
Motor Height
  • 01: 62.7mm 02: 93.7mm
  • 03: 124.7mm 04: 155.7mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A、B、C、D etc.
LF05
Lead Length
  • LF05:0.5m lead(4x20AWG)，
    compatible with WS20J4ZQ connector
01
Custom
  • 1
    • *standard type
      "unmarked"
Parameter configuration
Motor Model DBM2501 DBM2502 DBM2503 DBM2504
Motor Height (H) 62.7 93.7 124.7 155.7
Rotor Height (h) 32 63 93.9 124.8
Continuous Torque (N·m) 4.3 8.1 11.6 14.6
Peak Torque (N·m) 14 26 37 47

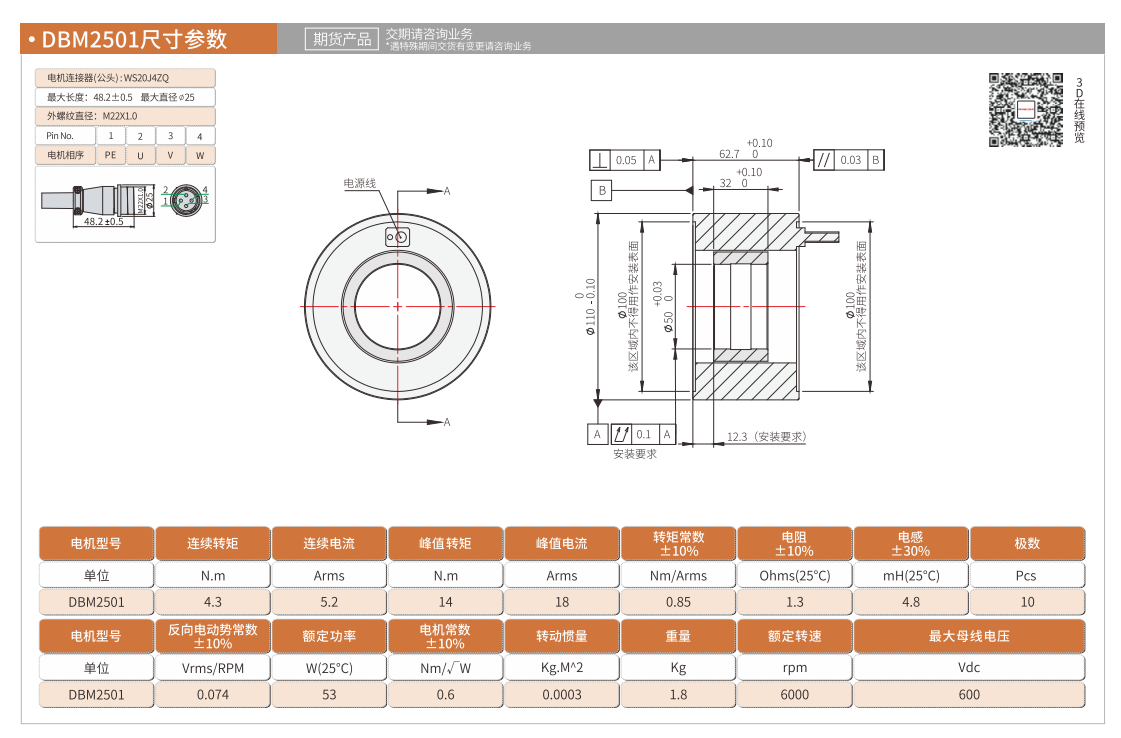

DBM2501

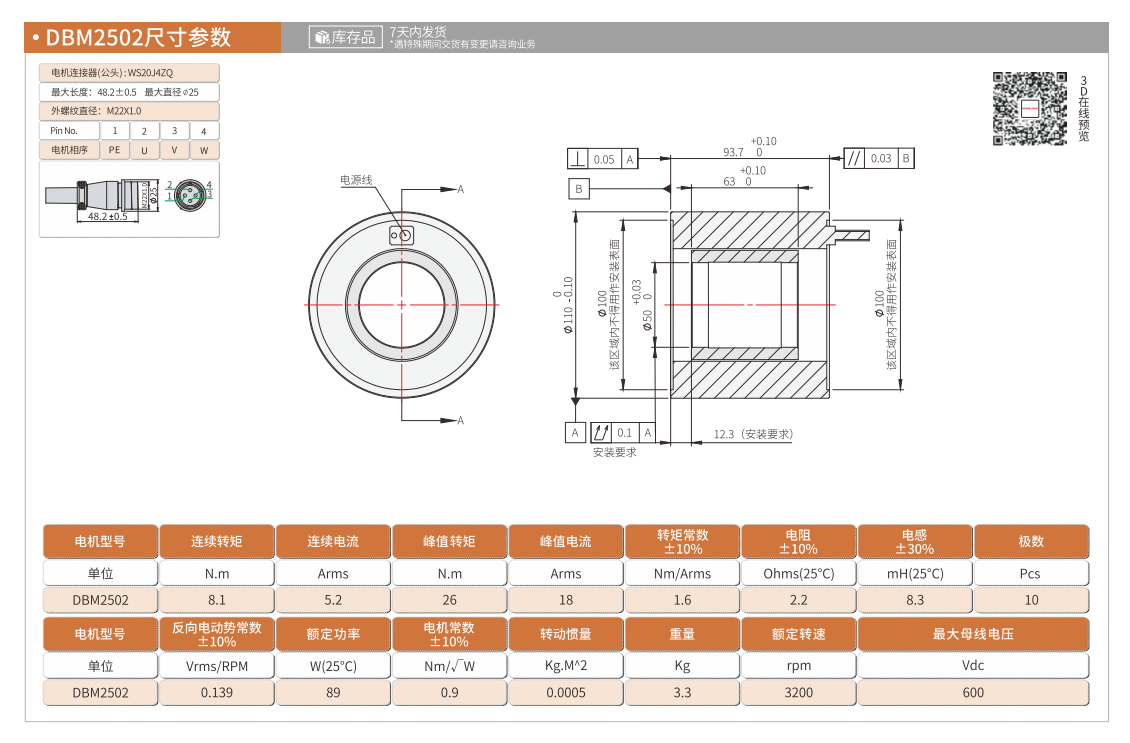

DBM2502

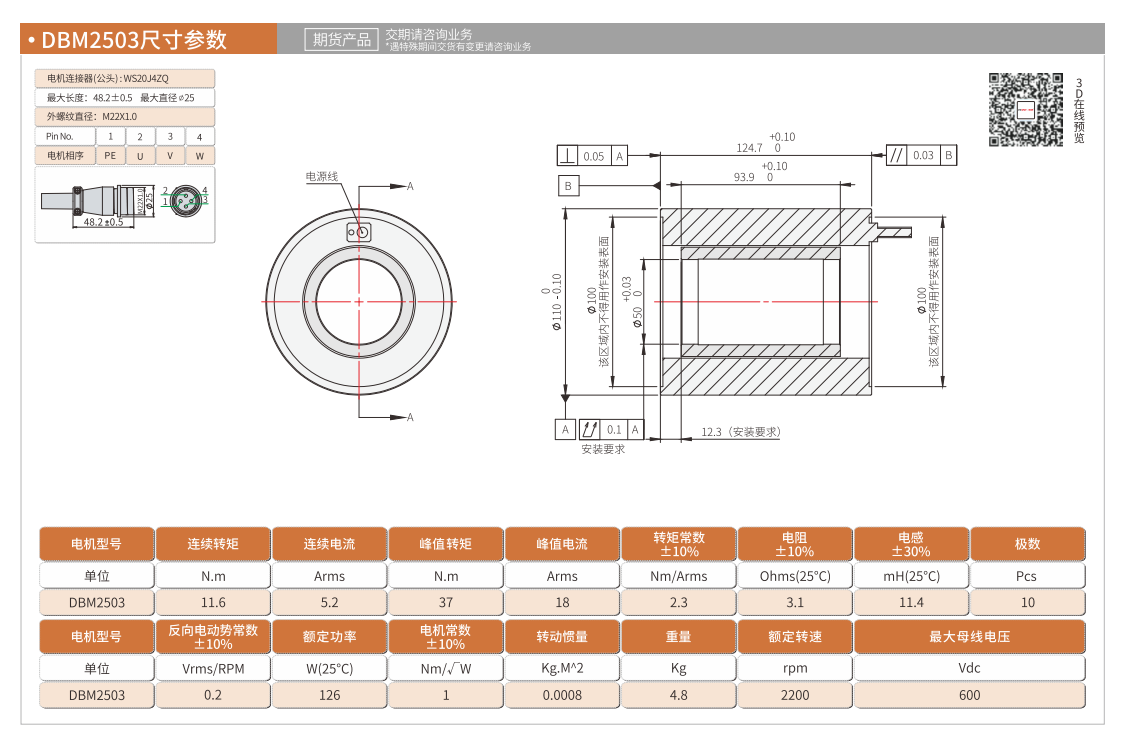

DBM2503

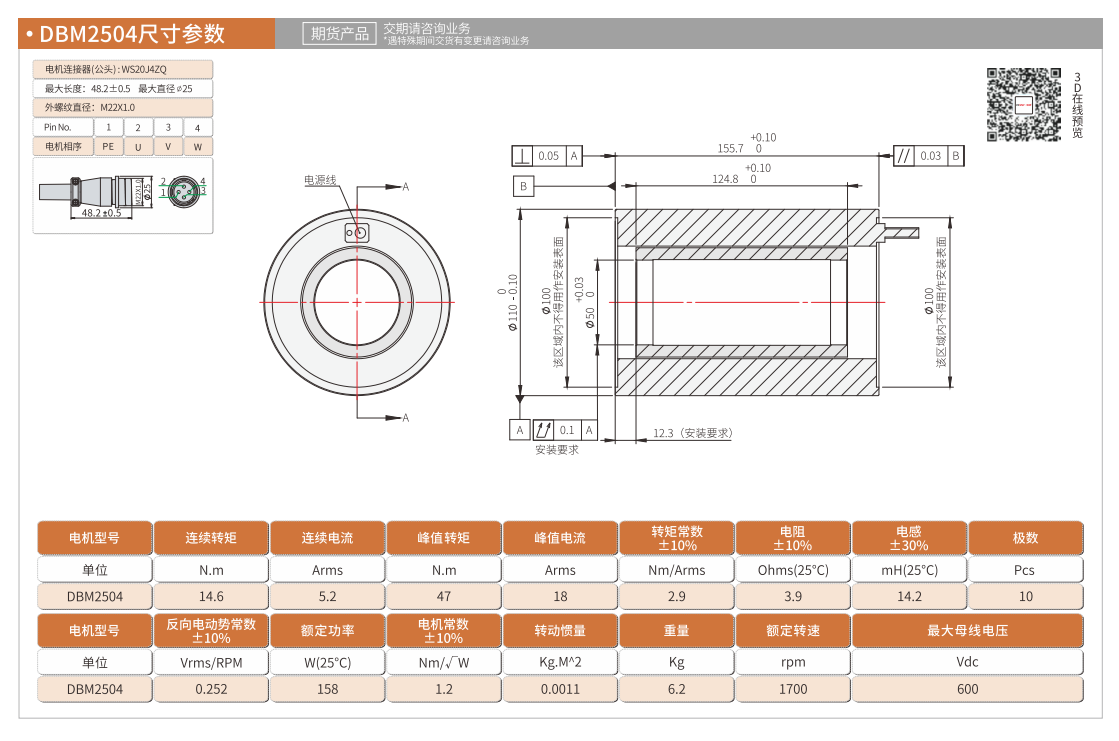

DBM2504
DBM2501
DBM2502
DBM2503
DBM2504
