Home Frame-less Direct Drive Motor DBM DBM35
DBM35

DBM35

Features

  • Low cogging torque
  • High torque density
  • Low speed ripple
  • High acceleration
  • Standard high-voltage insulation

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry Precision Laser Processing Industry Precision Testing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DBM
Series
  • DBM
35
Motor Diameter
  • 35：140mm
01
Motor Height
  • 01: 83.7mm 03: 133.7mm
A
Winding Code
  • *standard type
    "unmarked"
  • A、B、C、D etc.
LF05
Lead Length
  • LF05:0.5m lead(4x20AWG)，
    compatible with WS20J4ZQ connector
01
Customized
  • 1
  • *standard type
    "unmarked"
Parameter configuration
Motor Model DBM3501 DBM3502 DBM3503 DBM3504
Motor Height(H) 83.7 133.7
Rotor Height(h) 51 101
Continuous Torque(N.m) 12.1 21.7
Peak Torque(N.m) 39 70

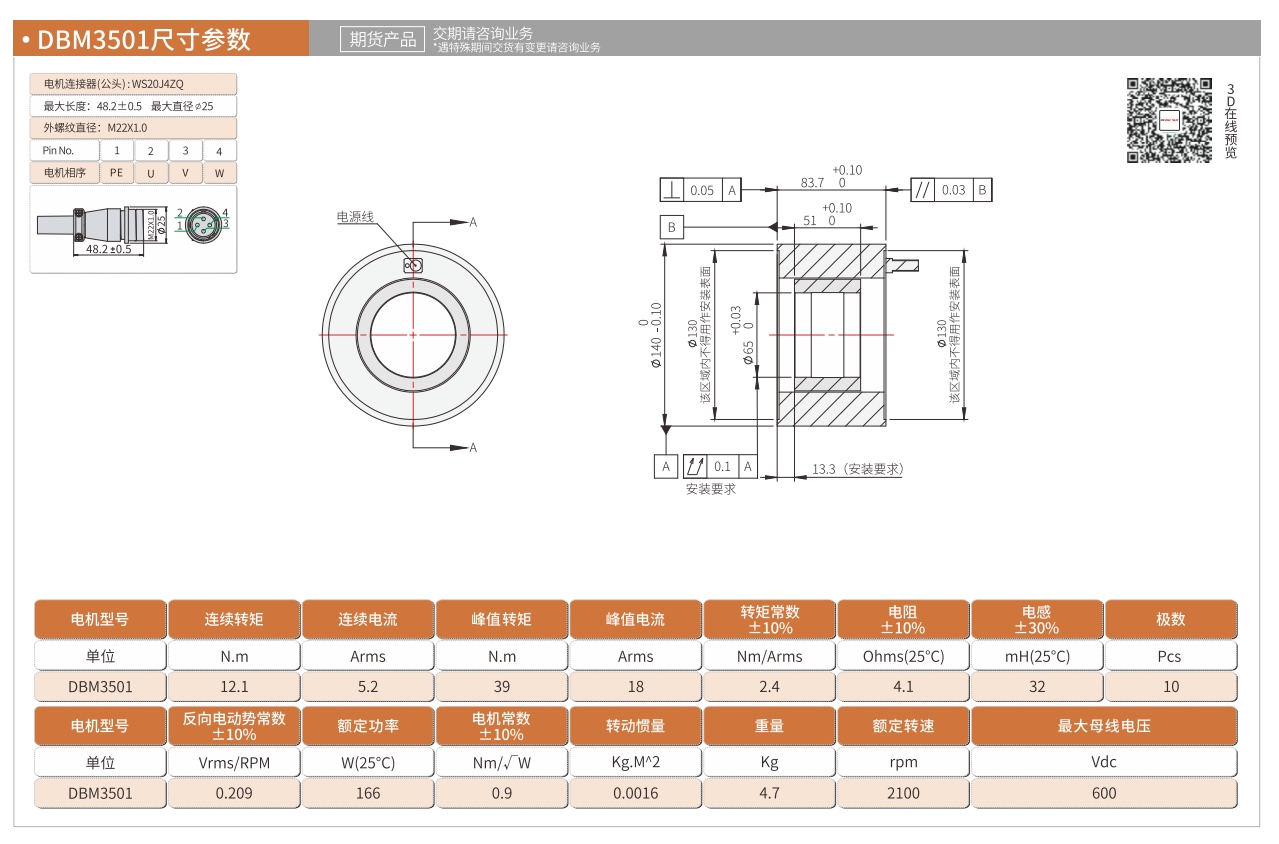

DBM3501

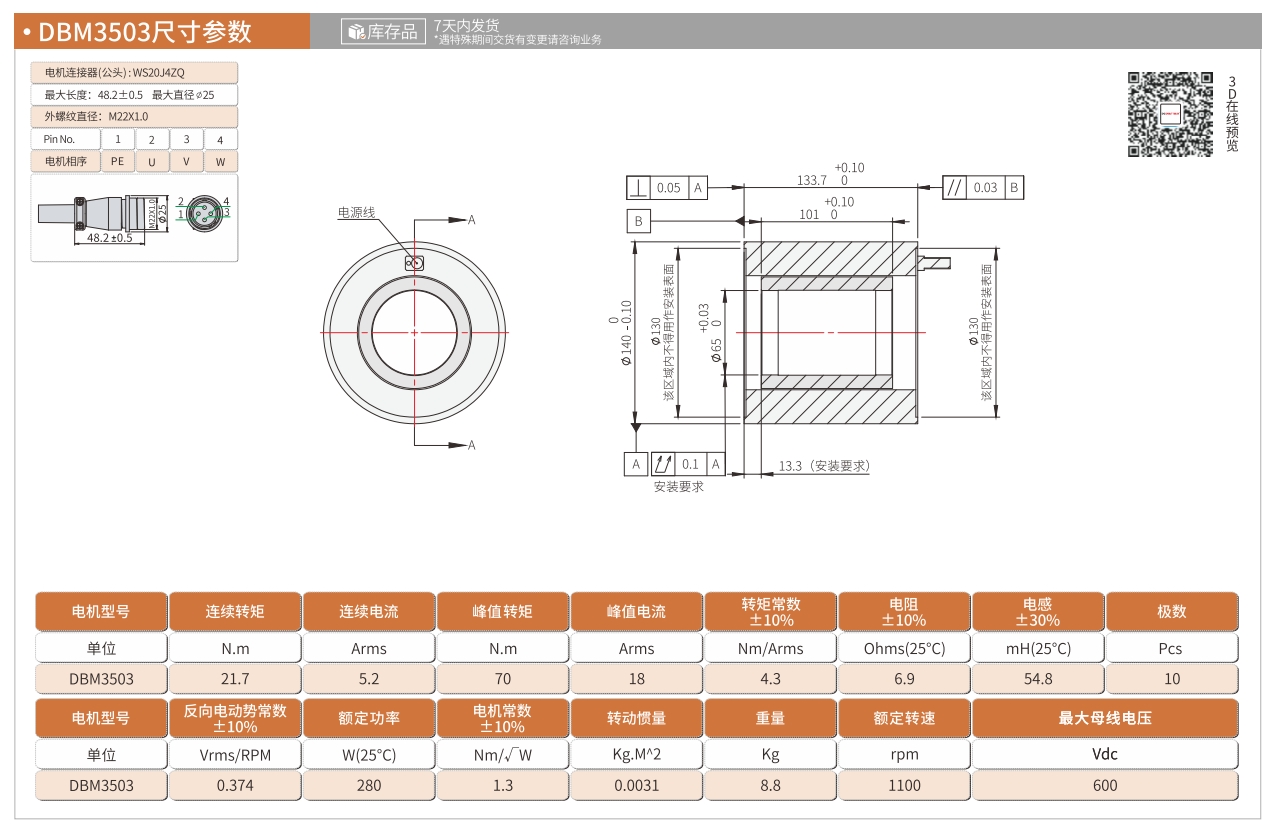

DBM3503
DBM3501
DBM3503
