Home Frame-less Direct Drive Motor DBM DBM43
DBM43

DBM43

Features

  • Low cogging torque
  • High torque density
  • Low speed ripple
  • High acceleration
  • Standard high-voltage insulation

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry SMT Industry Precision Testing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DBM
Series
  • DBM
43
Motor Diameter
  • 43：150mm
02
Motor Height
  • 02: 47.6mm 03: 70.6mm
A
Winding Code
  • *standard type
    "unmarked"
  • A,B,C,D etc.
LF05
Lead Length
  • LF05:0.5m lead(4x20AWG)，
    compatible with WS20J4ZQ connector
01
Winding Code
  • 1
    • *standard type
      "unmarked"
Parameter configuration
Motor Model DBM4301 DBM4302 DBM4303 DBM4304
Motor Height(H) 47.6 70.6
Rotor Height(h) 30 52.8
Continuous Torque(N.m) 11.6 22.2
Peak Torque(N.m) 37 71

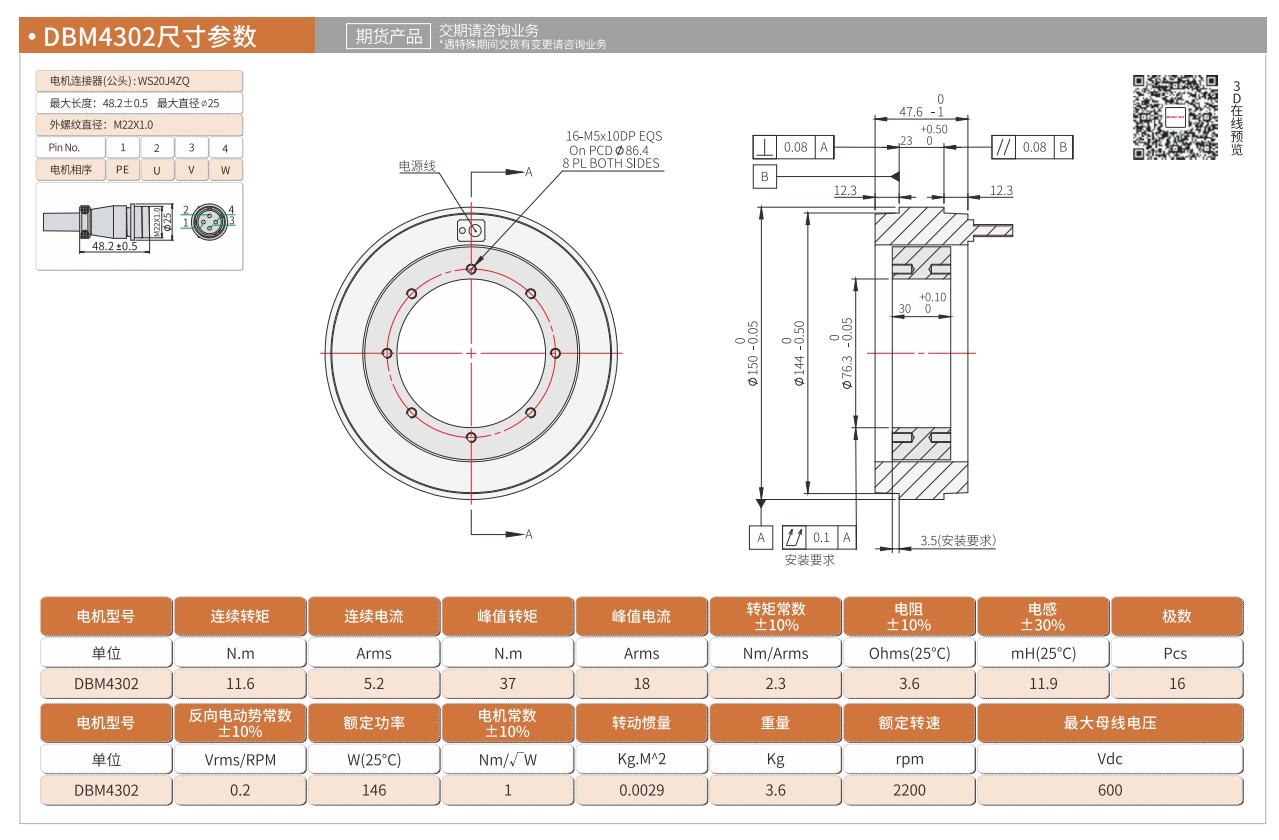

DBM4302

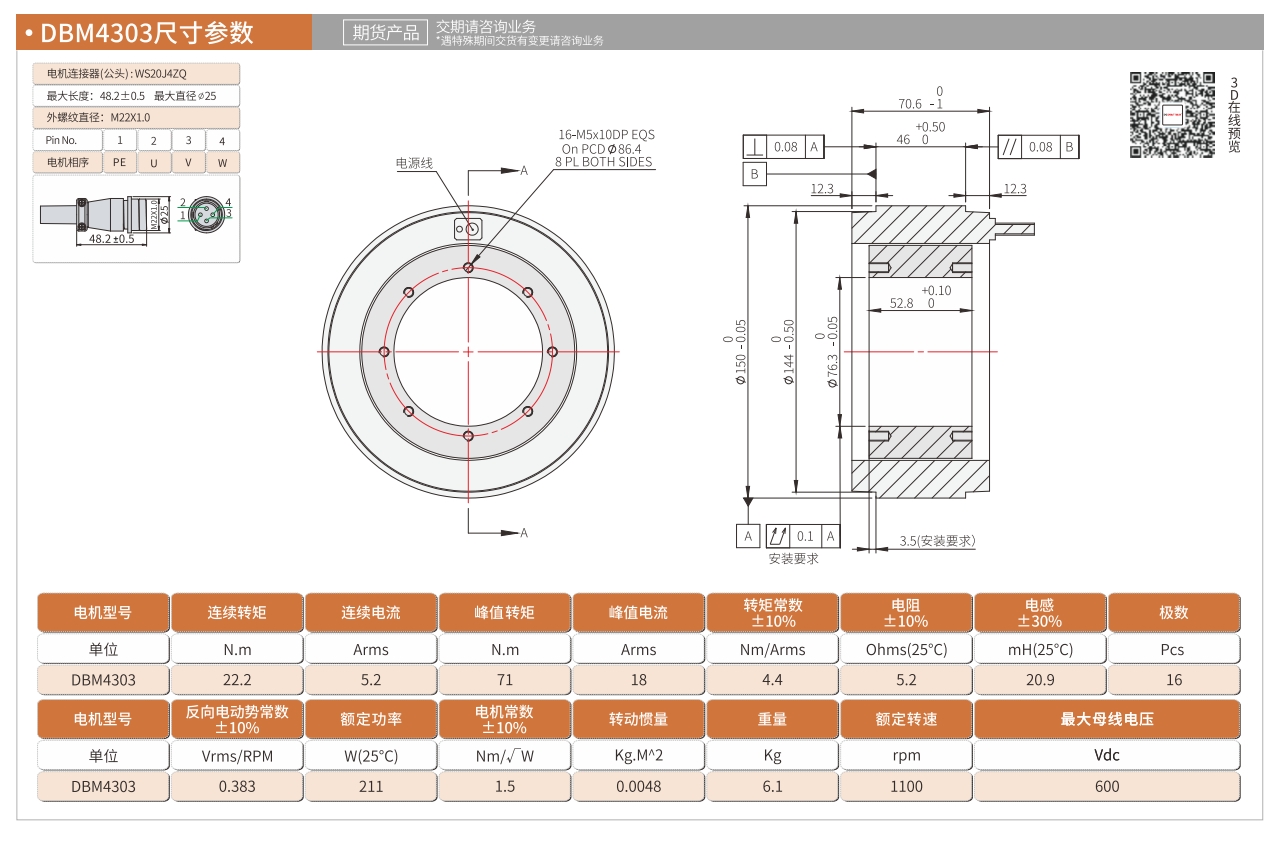

DBM4303
DBM4302
DBM4303
