Home Frame-less Direct Drive Motor DBM DBM45
DBM45

DBM45

Features

  • Low cogging torque
  • High torque density
  • Low speed fluctuation
  • High acceleration
  • Standard high-voltage insulation

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry SMT Industry Precision Testing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DBM
Series
  • DBM
45
Motor Diameter
  • 45：190mm
02
Motor Height
  • 02: 141mm 03: 175mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A、B、C、D etc.
LC05
Lead-out Length
  • LC05:0.5m lead-out(4x16AWG)，
    compatible with WS20J4ZQ connector
01
Customized
  • 1
  • *standard type
    "unmarked"
Parameter configuration
Motor Model DBM4501 DBM4502 DBM4503 DBM4504
Motor Height(H) 141 175
Rotor Height(h) 103 137
Continuous Torque(N.m) 48.9 62.9
Peak Torque(N.m) 159 204

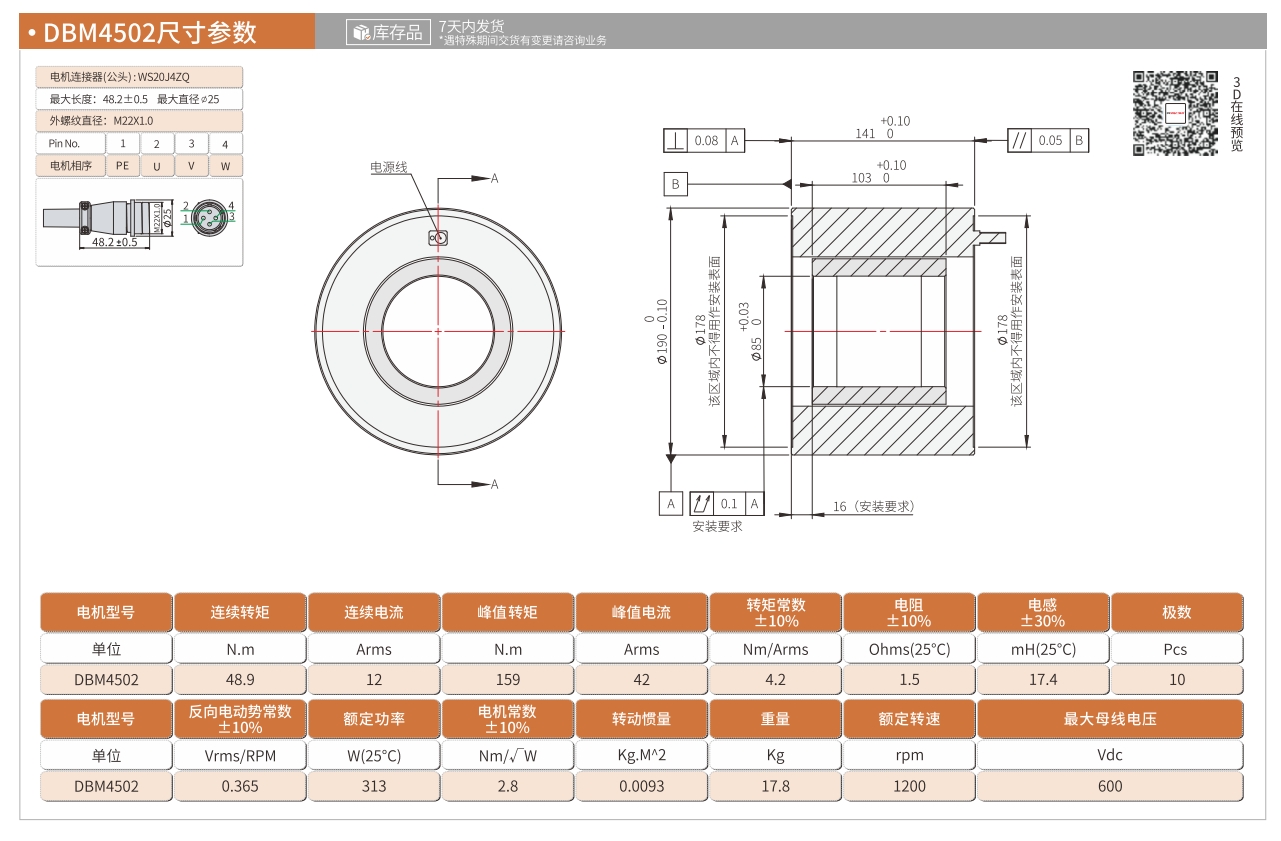

DBM4502

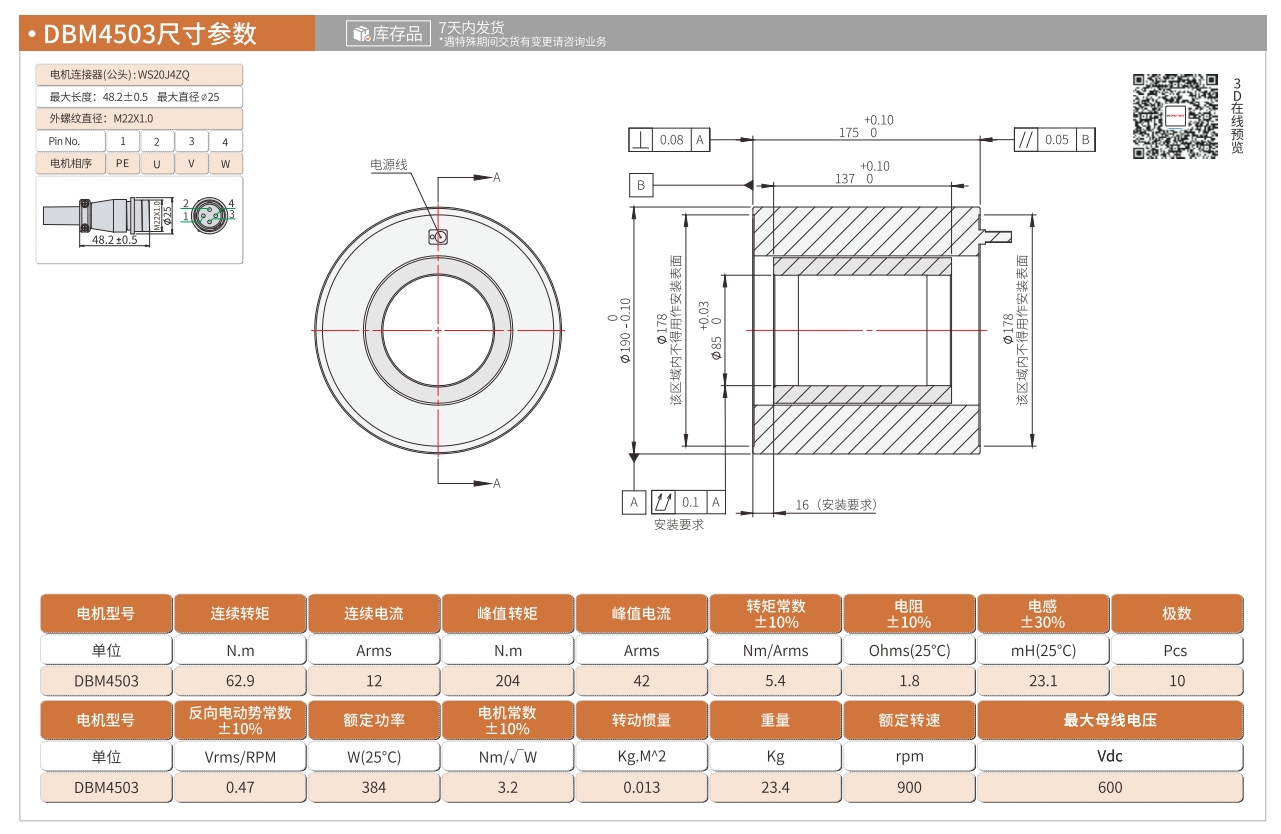

DBM4503
DBM4502
DBM4503
