Home Frame-less Direct Drive Motor DBM DBM57
DBM57

DBM57

Features

  • Low cogging torque
  • High torque density
  • Low speed ripple
  • High acceleration
  • Standard high-voltage insulation

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry SMT Industry Precision Testing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DBM
Series
  • DBM
57
Motor Diameter
  • 57：202.9mm
02
Motor Height
  • 02: 65mm 03: 106mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A、B、C、D etc.
LC05
Lead Length
  • LC05:0.5m lead(4x16AWG)，
    compatible with WS20J4ZQ connector
01
Custom
  • 1
  • *standard type
    "unmarked"
Parameter configuration
Motor Model DBM5701 DBM5702 DBM5703 DBM5704
Motor Height(H) 65 106
Rotor Height(h) 45.7 86.4
Continuous Torque(N.m) 33.9 60.8
Peak Torque(N.m) 117 211

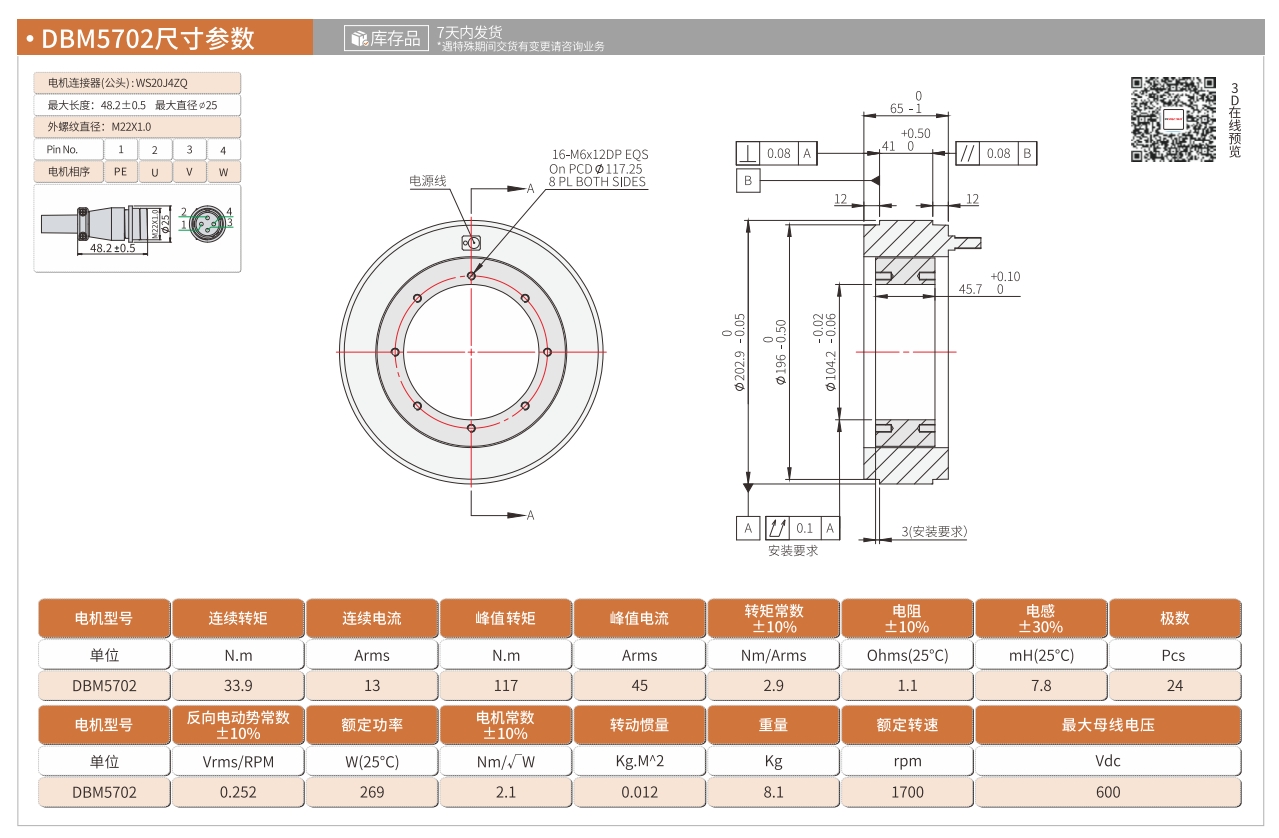

DBM5702

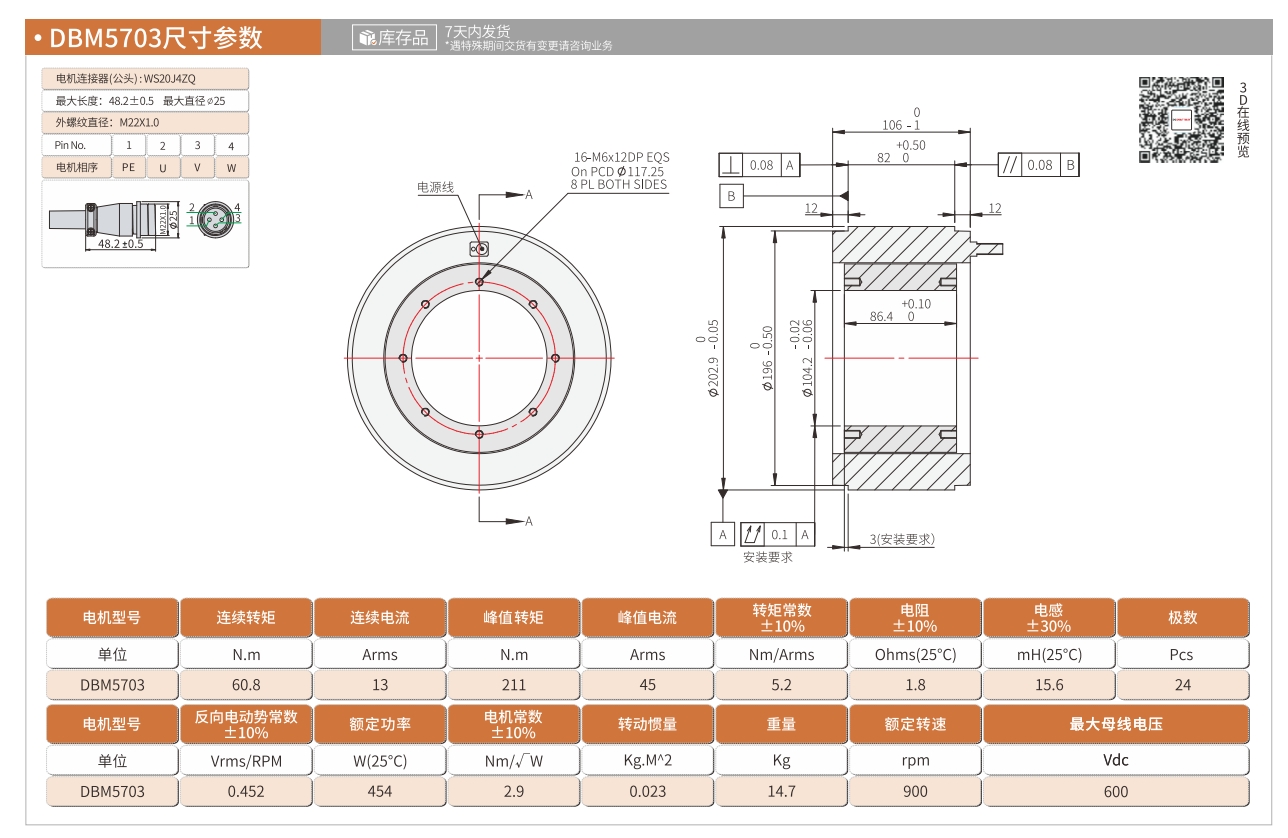

DBM5703
DBM5702
DBM5703
