Home Frame-less Direct Drive Motor DBM DBM60
DBM60

DBM60

Features

  • Low Cogging Torque
  • High Torque Density
  • Minimal Speed Fluctuations
  • High Acceleration
  • Standard High Voltage Insulation

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry SMT Industry Precision Testing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DBM
Series
  • DBM
60
Motor Diameter
  • 60：230mm
02
Motor Height
  • 02: 153.5mm 03: 203mm
A
Winding Code
  • *Standard Winding
    “Unmarked”
  • A, B, C, D, etc.
LD05
Lead Length
  • LD05: 0.5m Lead (4x13AWG)，
    Compatible with WS20J4ZQ Connector
01
Customization
  • 1
  • *Standard Type
    “Unmarked”
Parameter configuration
Motor Model DBM6001 DBM6002 DBM6003 DBM6004
Motor Height (H) 153.5 203
Rotor Height (h) 100.5 150.1
Continuous Torque (N·m) 108.4 153.3
Peak Torque (N·m) 267 398

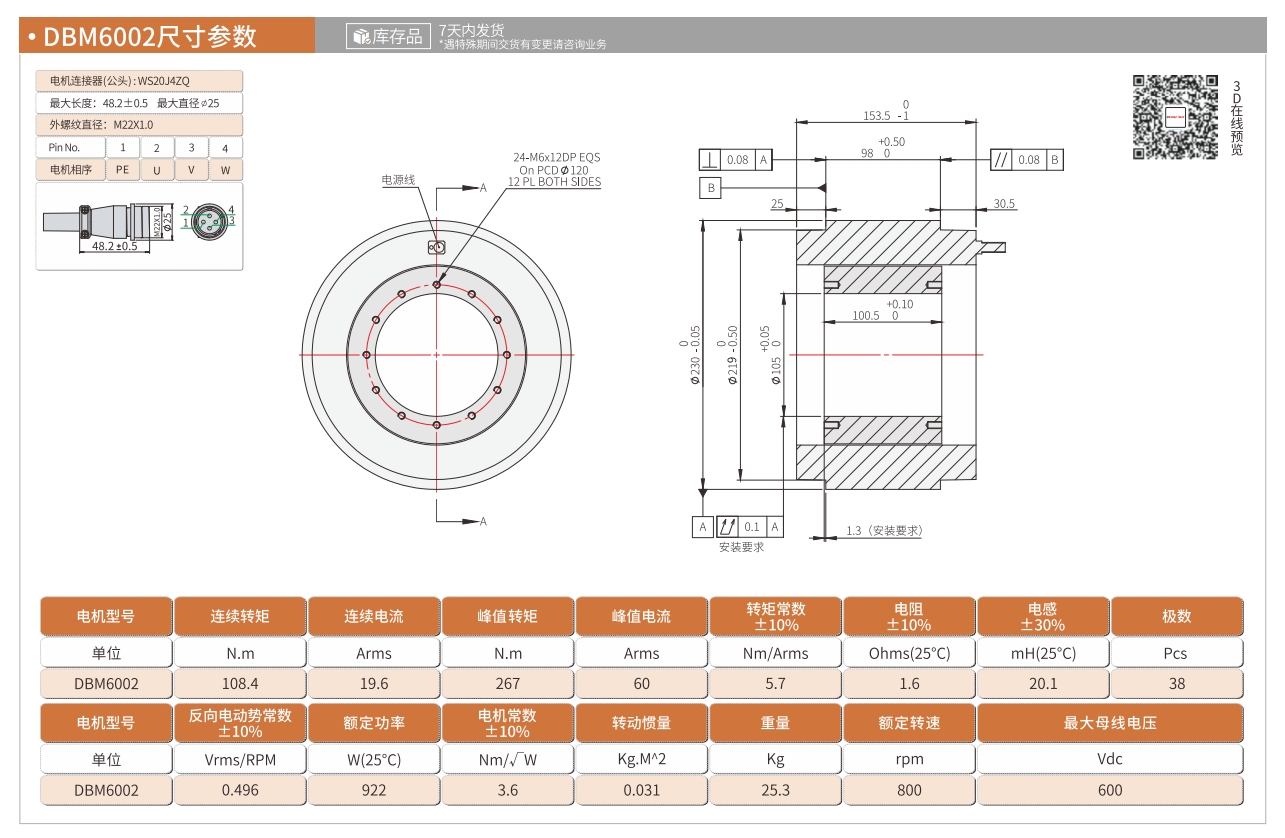

DBM6002

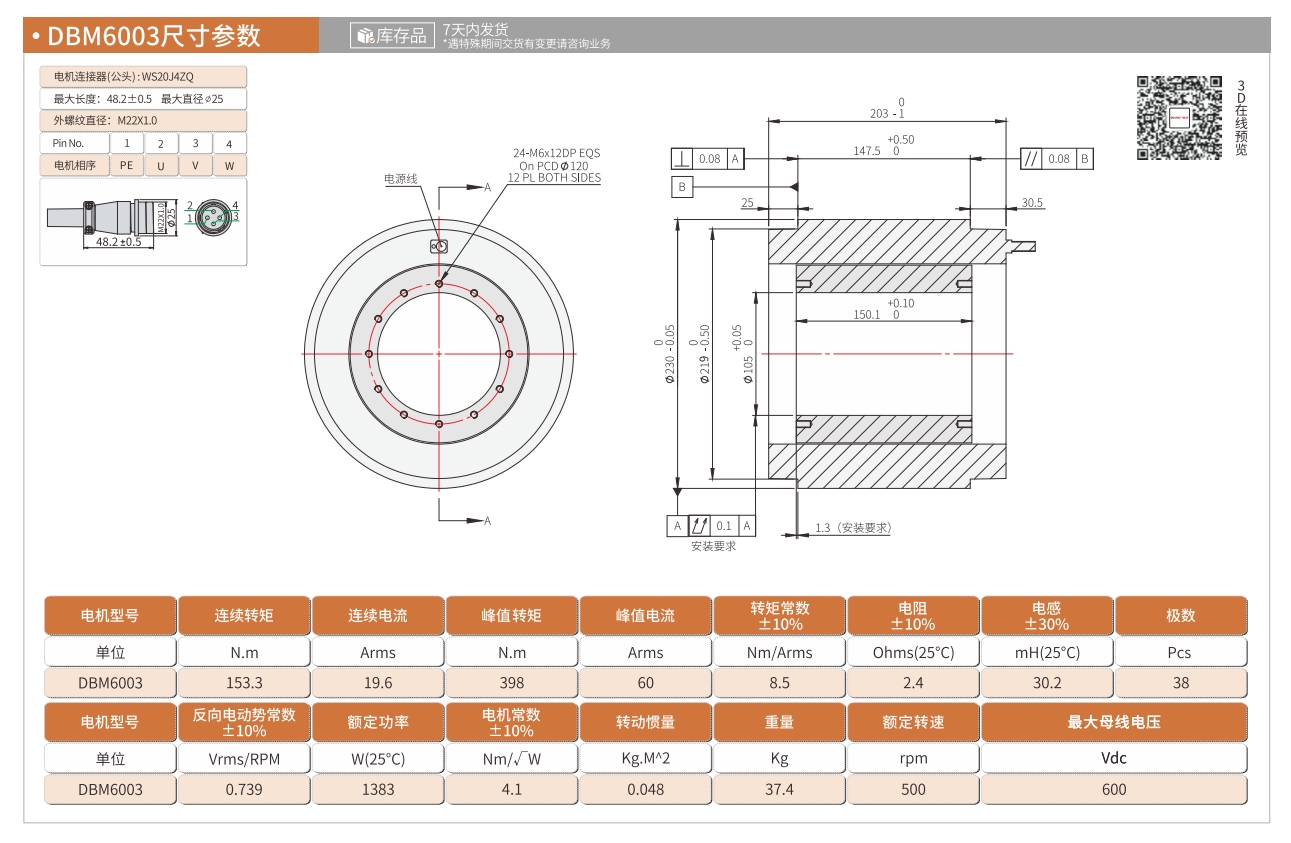

DBM6003
DBM6002
DBM6003
