Home Frame-less Direct Drive Motor DBM DBM79
DBM79

DBM79

Features

  • Low Cogging Torque
  • High Torque Density
  • Minimal Speed Fluctuations
  • High Acceleration
  • Standard High Voltage Insulation

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry SMT Industry Precision Testing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DBM
Series
  • DBM
79
Motor Diameter
  • 79：259.7mm
02
Motor Height
  • 02: 90.1mm 03: 153.6mm
A
Winding Code
  • *Standard Winding
    "Unmarked"
  • A, B, C, D, etc.
LC05
Lead Length
  • LD05: 0.5m Lead (4x13AWG)，
    Compatible with WS20J4ZQ Connector
01
Customization
  • 1
    • *Standard Type
      “Unmarked”
Parameter configuration
Motor Model DBM7901 DBM7902 DBM7903 DBM7904
Motor Height (H) 90.1 153.6
Rotor Height (h) 69.9 133.4
Continuous Torque (N·m) 76.8 142.8
Peak Torque (N·m) 230 442

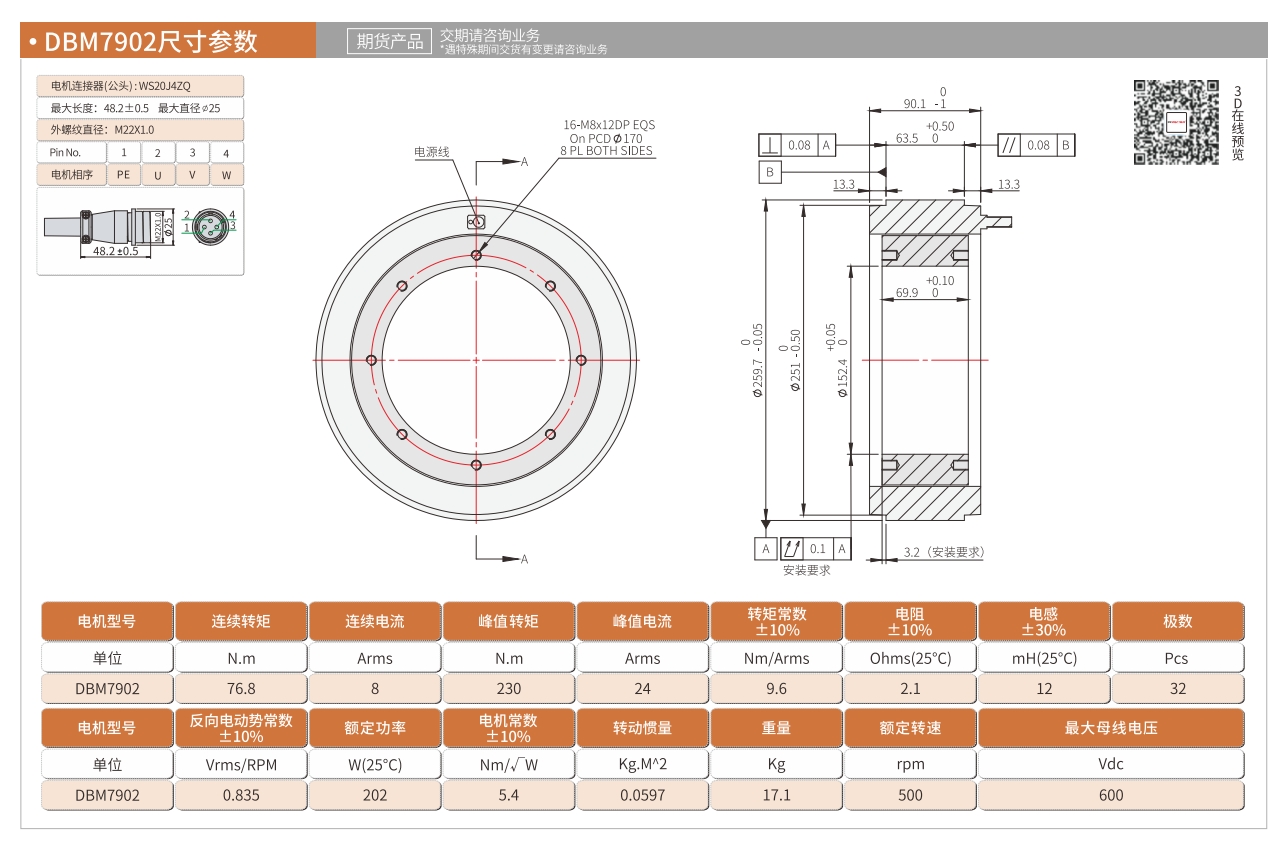

DBM7902

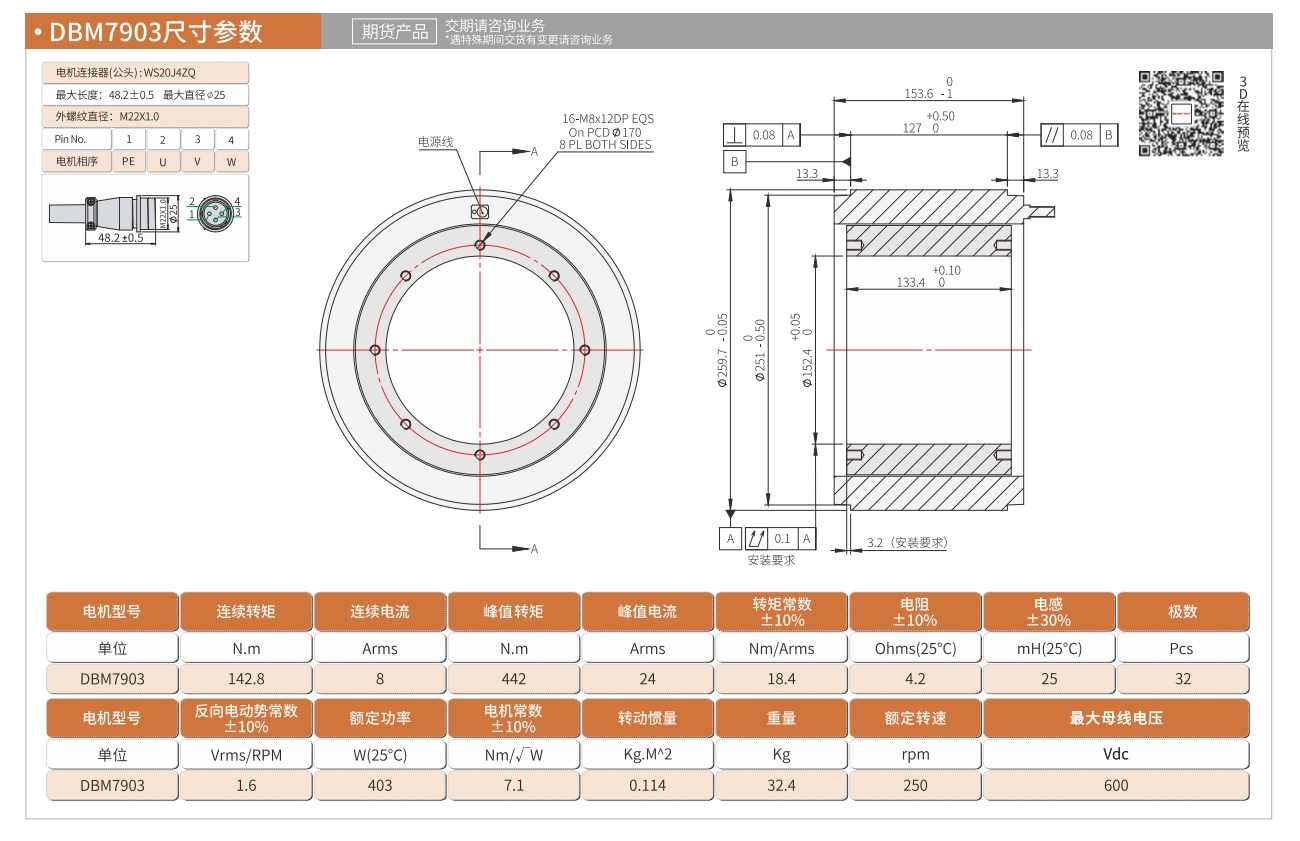

DBM7903
DBM7902
DBM7903
