DH05

DH05

Features

  • Direct Drive Brushless Motor
  • High Torque Density
  • Low Cogging Effect
  • Smooth Low-Speed Operation
  • Space-Saving

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DH
Series
  • DH
05
Frame Size
  • 05：138mm
1
Rotor Stack Length
  • 1 = Short Rotor Stack
  • 3 = Long Rotor Stack
A
Winding Code
  • *Standard Winding
    "Unmarked"
  • A, B, C, D, etc.
RS20
Encoder Code
  • RS20: Analog Output (Hengstler)
  • R52N = Analog Output (Domestic)）
  • R52L = Digital Output (Domestic)
  • E325 = Absolute Value (Heidenhain)）
LF05
Lead Length
  • LF05: 0.5 Meter Lead (4x20 AWG),
    Compatible with WS20J4ZQ Connector
01
Customization
  • 1
  • *Standard Type
    "Unmarked"
Parameter configuration
Motor Model DH051 DH053
Motor Length (L) 175 225
Center Hole Diameter (mm) 45/46 45/46
Continuous Torque (N·m) 11.5 20.6
Peak Torque (N·m) 31.2 55.9

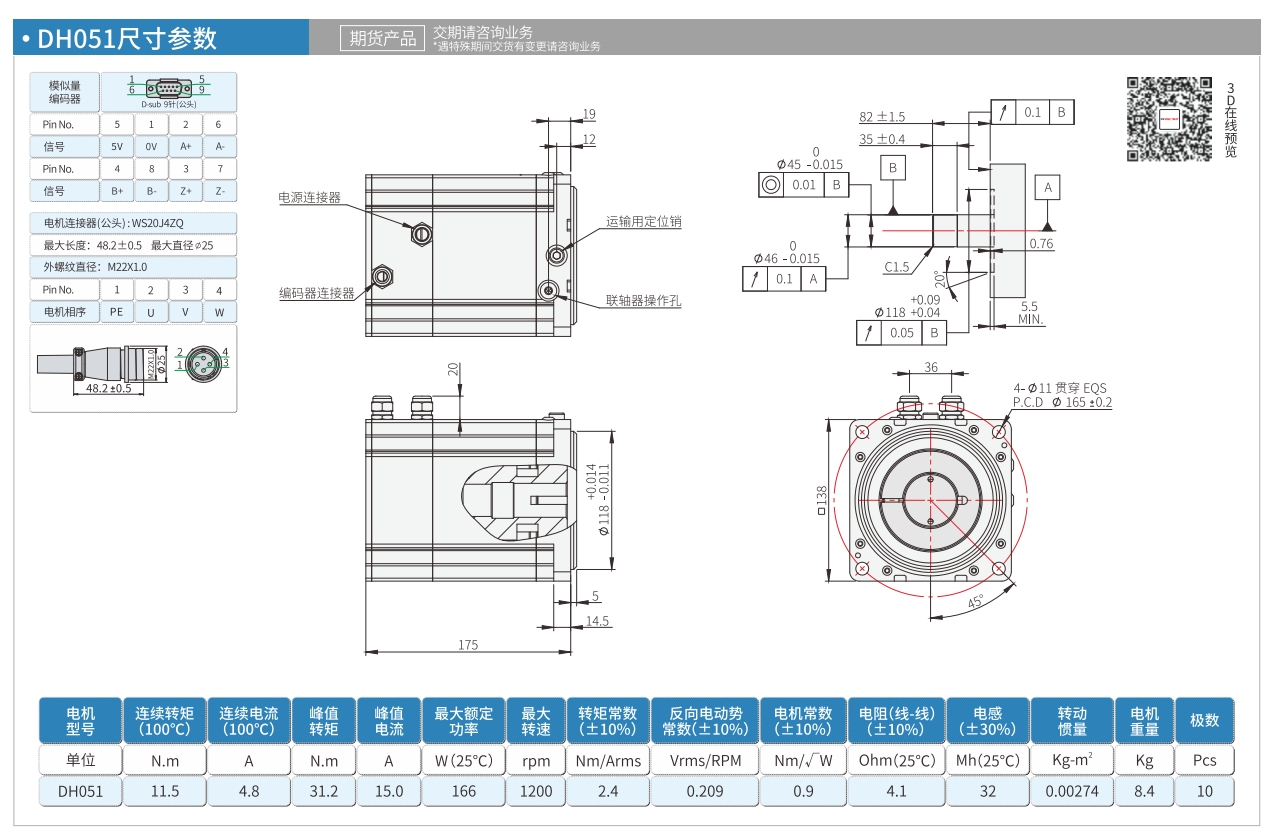

DH051

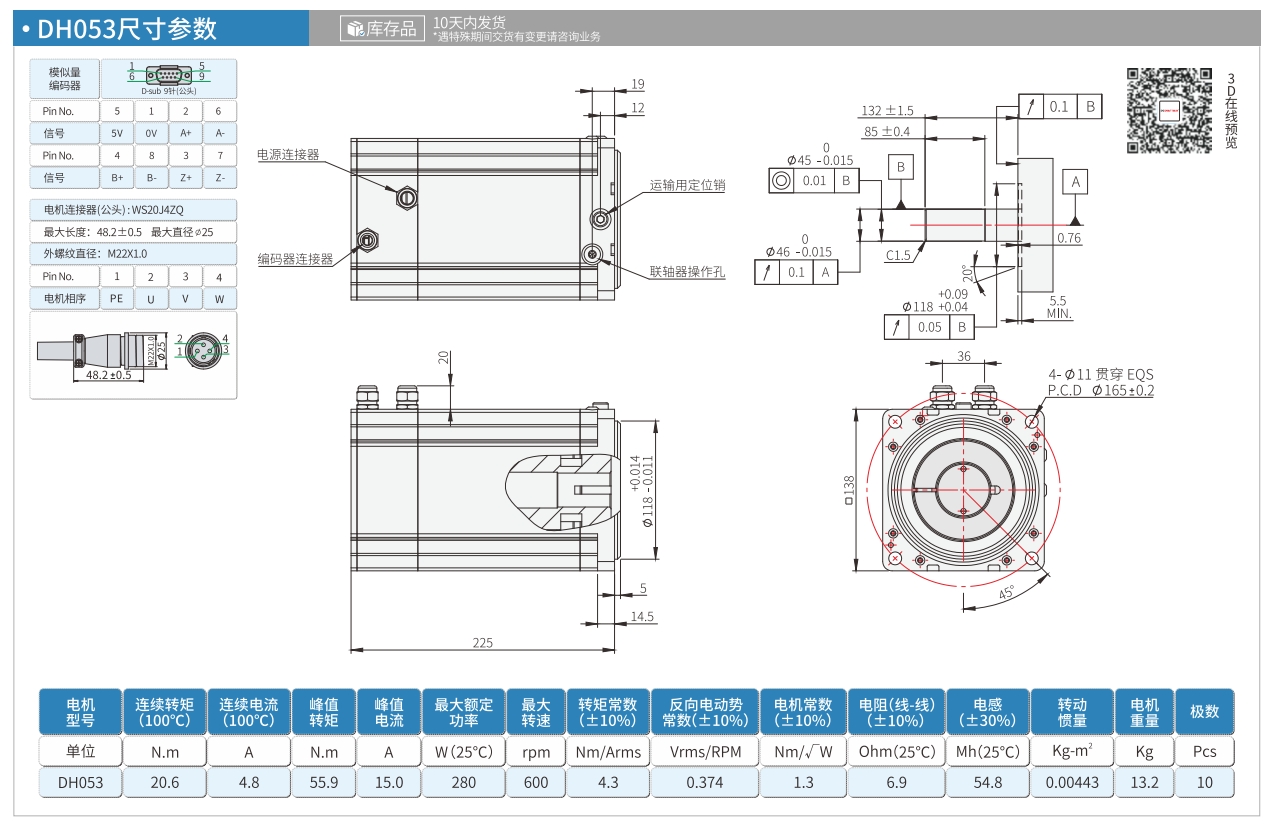

DH053
DH051
DH053
