Home Modular Direct Drive Motor DH DH06
DH06

DH06

Features

  • Direct Drive Brushless Motor
  • High Torque Density
  • Low Cogging Effect
  • Smooth Operation at Low Speeds
  • Space-Saving

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DH
Series
  • DH
06
Frame Size
  • 06：188mm
2
Rotor Stacking Length
  • 2 = Intermediate Rotor Stacking
  • 3 = Long Rotor Stacking
A
Winding Code
  • *Standard Winding
    "Unmarked"
  • A,B,C,D etc.
RS20
Encoder Code
  • RS20: Analog Signal (Hengstler)
  • R52N = Analog Signal (Domestic)
  • R52L = Digital Signal (Domestic)
  • E325 = Absolute Value (Heidenhain)
LC05
Lead Length
  • LC05: 0.5-meter lead (4x16AWG),
    with WS20J4ZQ connector
01
Customization
  • 1
  • *Standard Type
    "Unmarked"
Parameter configuration
Motor Model DH062 DH063
Motor Length (L) 236 270
Center Hole Diameter (mm) 71/72 71/72
Continuous Torque (N·m) 46.2 59.4
Peak Torque (N·m) 121 155.5
DH062

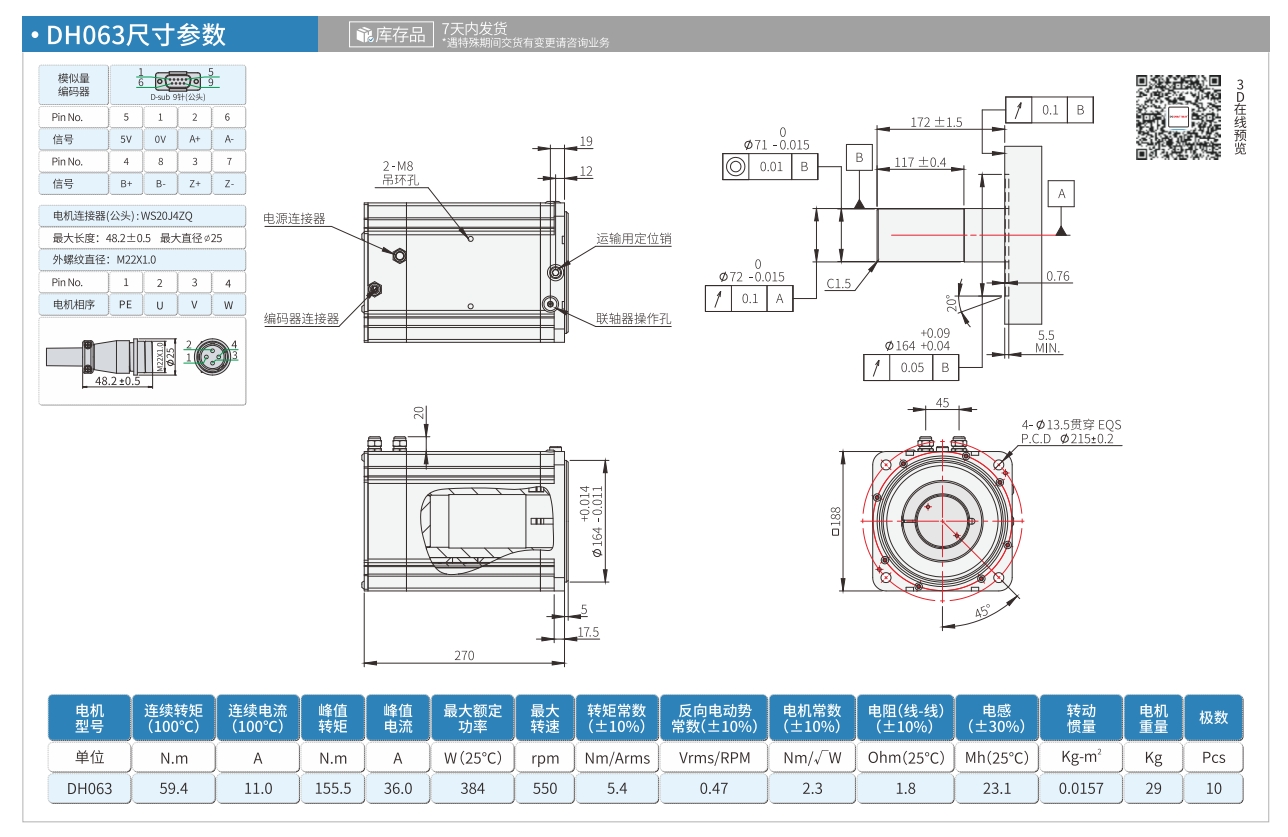

DH063
DH062
DH063
