CFS035

CFS035

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Economical

Applicable Industries

Display Panel Industry Solar PV Industry SMT Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CFS
Series
  • CFS
035
Armature Width
  • 035: 35mm 045: 45mm
  • 055: 55mm 065: 65mm
  • 075: 75mm 095: 95mm
  • 125: 125mm
A
Armature Length
  • A: 87.1mm D: 281.5mm
  • B: 151.9mm E: 346.3mm
  • C: 216.7mm F: 411.1mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature Lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
Stators order number rules
MFS
Series
  • MFS
035
Stator Width
  • 035: 30mm
L128
Stator Length
  • L128: 128mm
  • L192: 192mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MFS035-L128 128 30 9.5 1 4 32 1.2
MFS035-L192 192 30 9.5 1 6 32 1.2
Parameter configuration
Product Model CFS035A CFS035B CFS035C CFS035D CFS035E CFS035F
Armature Length(mm) 87.1 151.9 216.7 281.5 346.3 411.1
Continuous Thrust(N) 24 48 72 96 121 145
Peak Thrust(N) 53 107 160 214 267 321

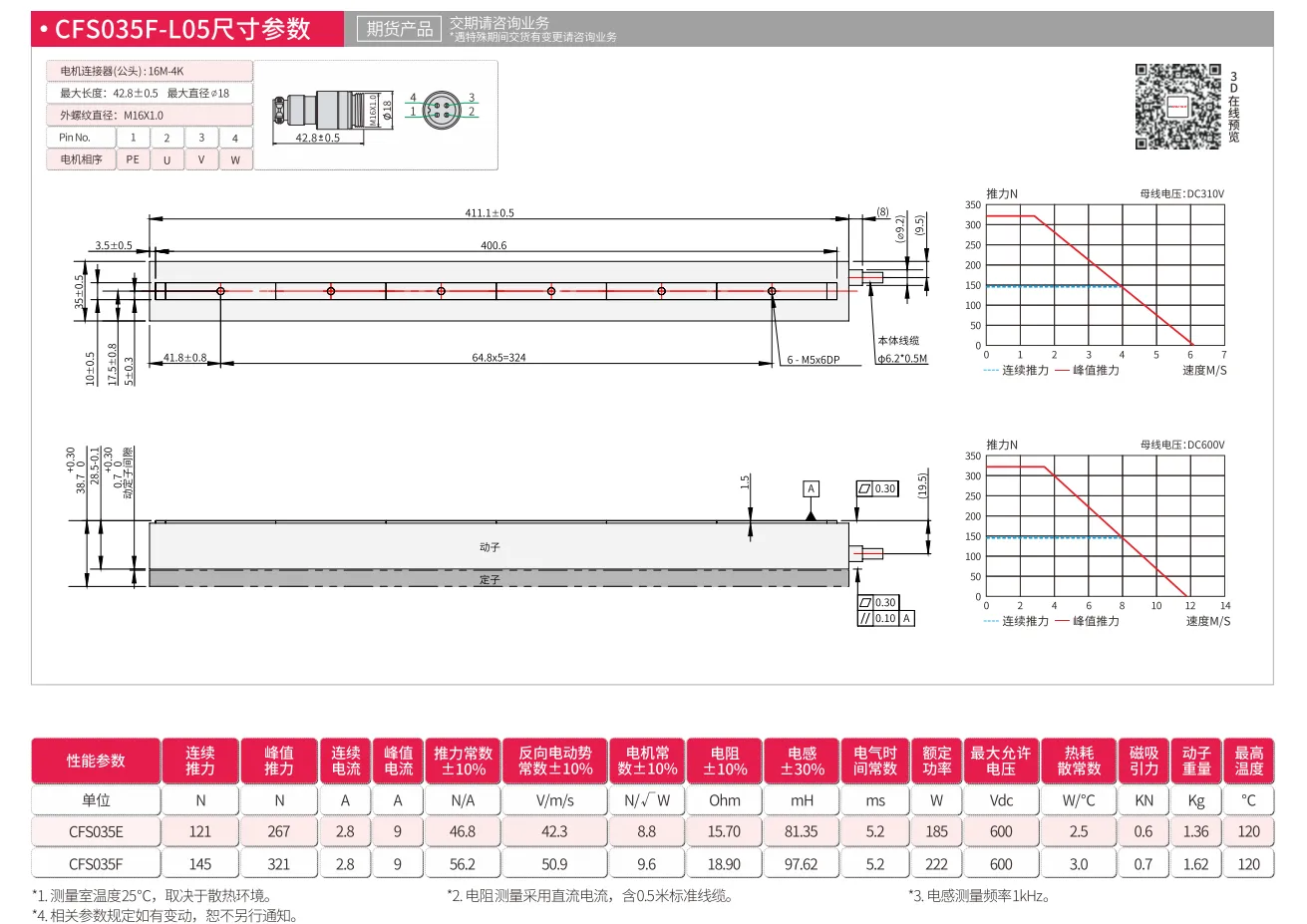

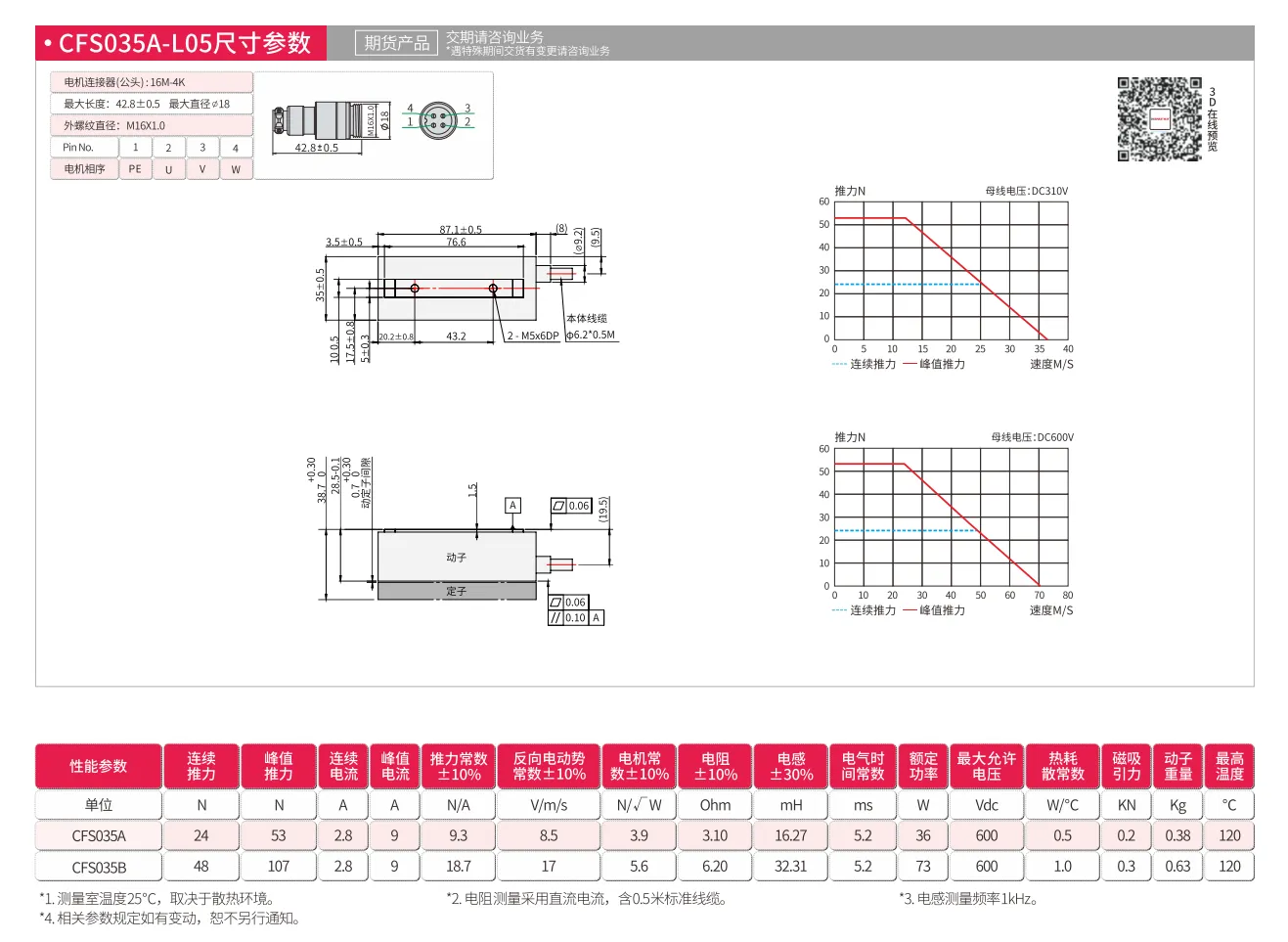

CFS035A

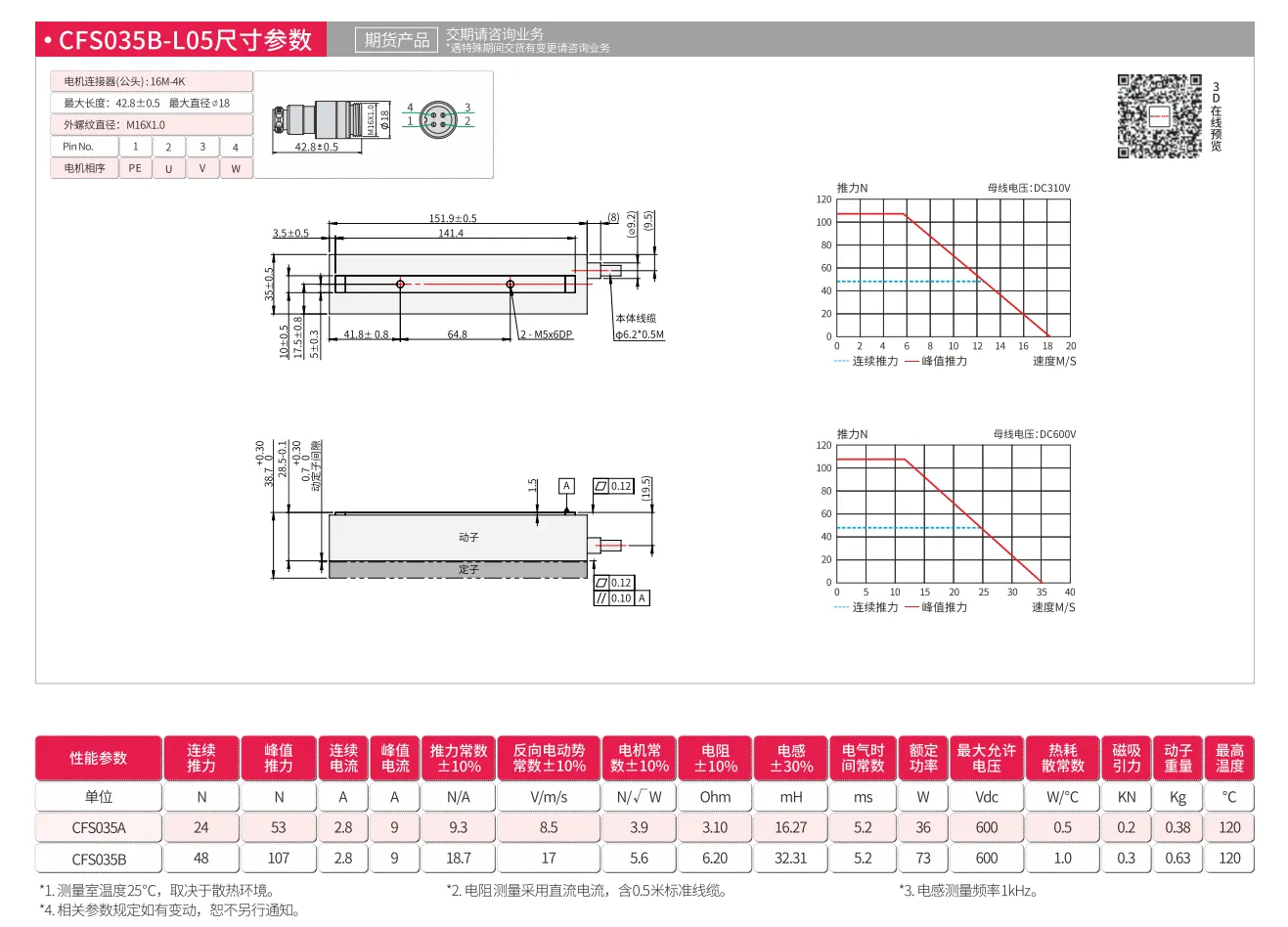

CFS035B

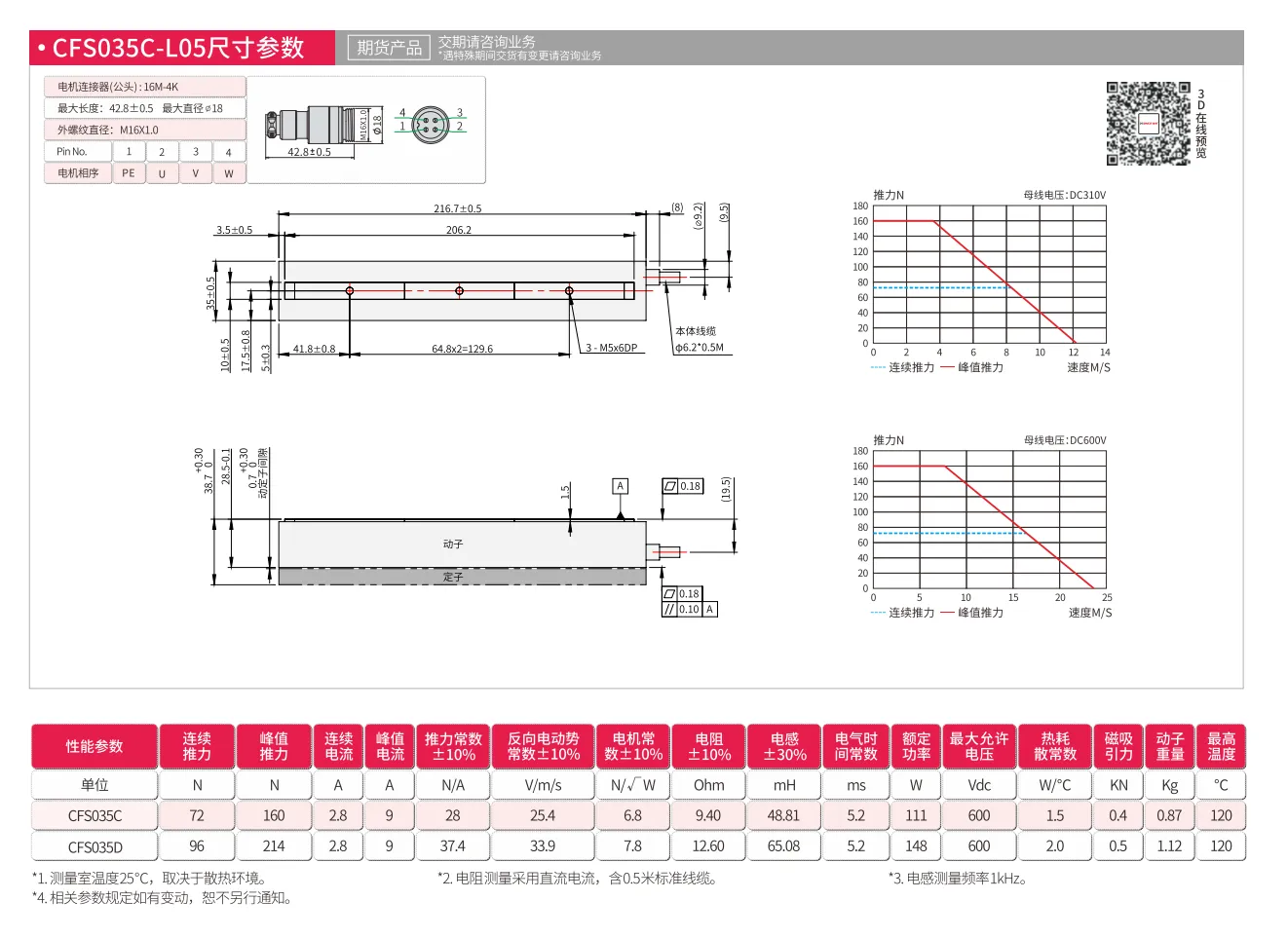

CFS035C

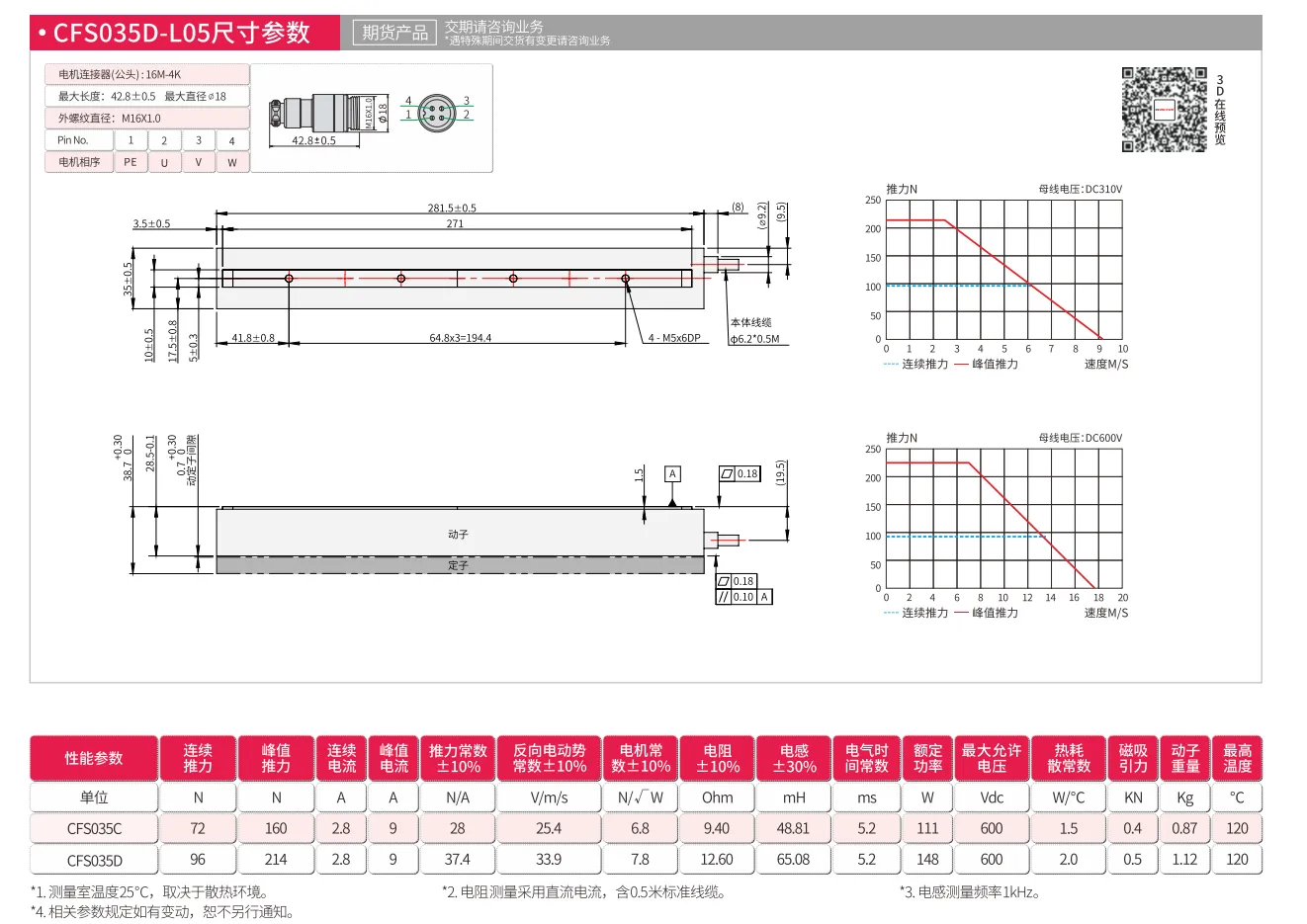

CFS035D

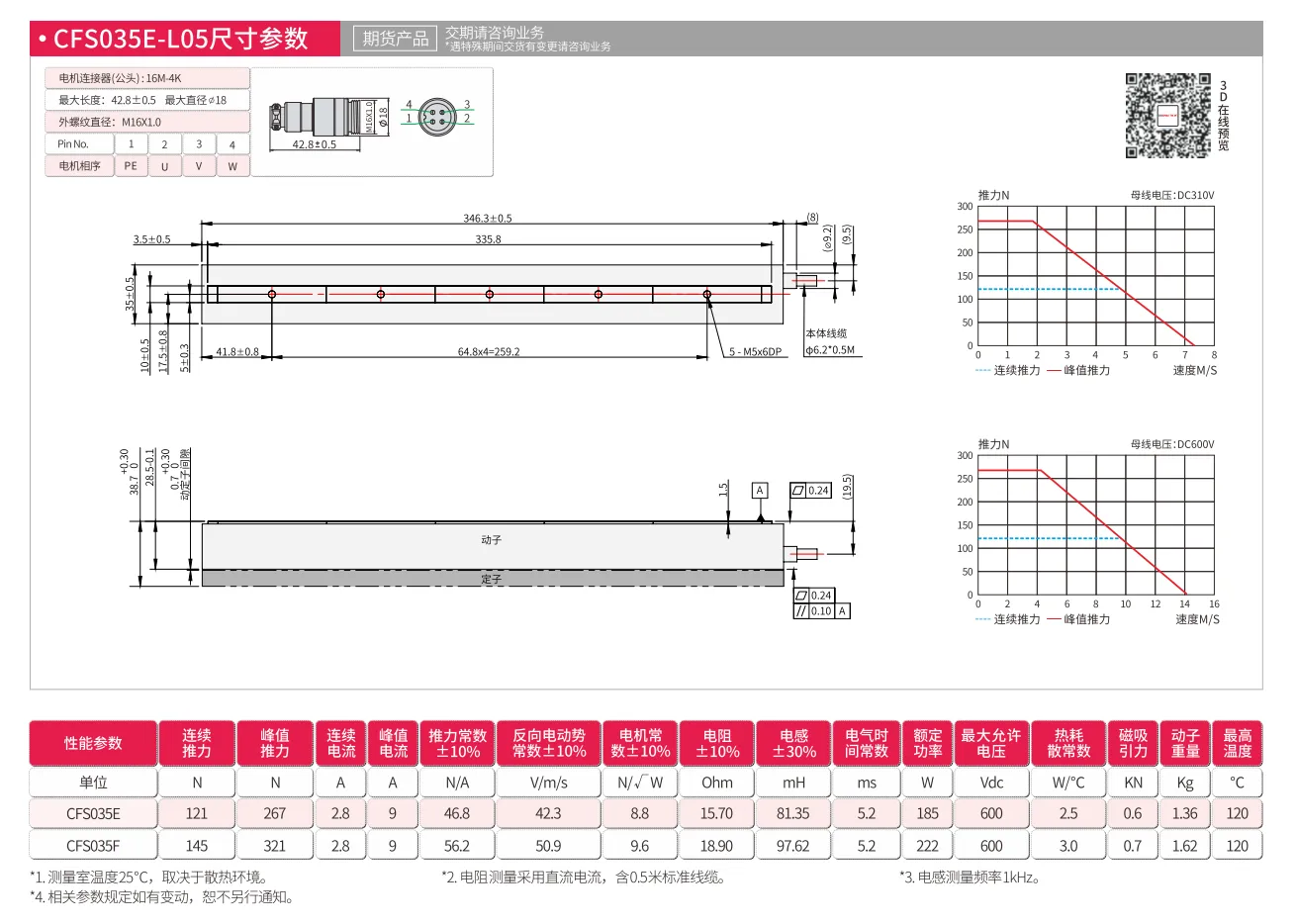

CFS035E
CFS035F
CFS035A
CFS035B
CFS035C
CFS035D
CFS035E
CFS035F
