CFS095

CFS095

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Economical

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry Precision Laser Processing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CFS
Series
  • CFS
095
Armature Width
  • 035: 35mm 045: 45mm
  • 055: 55mm 065: 65mm
  • 075: 75mm 095: 95mm
  • 125: 125mm
A
Armature Length
  • A: 87.1mm D: 281.5mm
  • B: 151.9mm E: 346.3mm
  • C: 216.7mm F: 411.1mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
  • LF05:0.5m lead(4x16AWG),
    with WS20J4ZQ connecto
Stator Order No.
MFS
Series
  • MFS
095
Stator Width
  • 095: 90mm
L128
Stator Length
  • L128: 128mm
  • L192: 192mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MFS095-L128 128 90 9.5 1 4 32 5.1
MFS095-L192 192 90 9.5 2 6 32 5.1
Parameter configuration
Product Model CFS095A CFS095B CFS095C CFS095D CFS095E CFS095F
Armature Length(mm) 87.1 151.9 216.7 281.5 346.3 411.1
Continuous Thrust(N) 152 305 458 611 771 916
Peak Thrust(N) 358 717 1075 1434 1811 2150

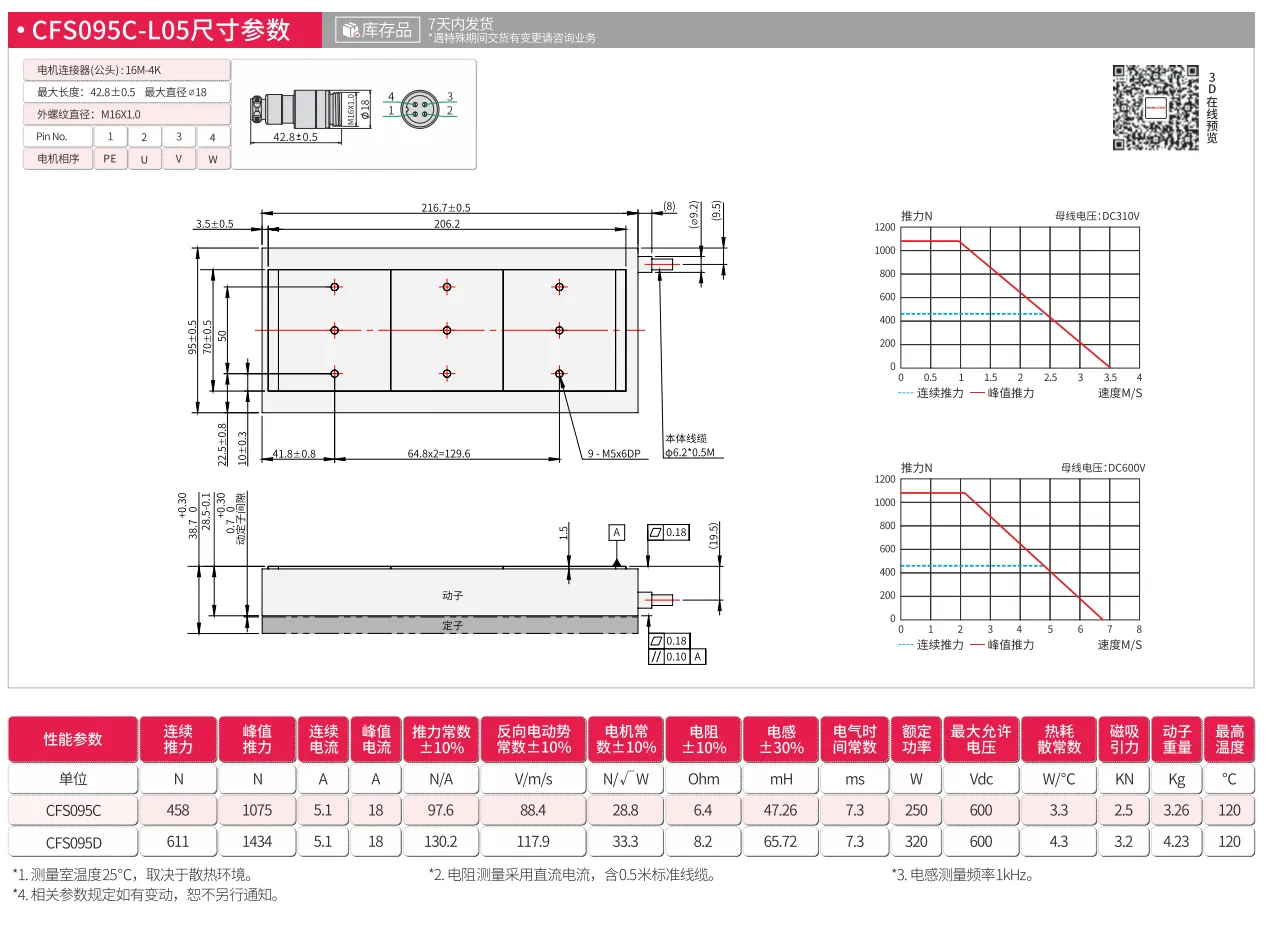

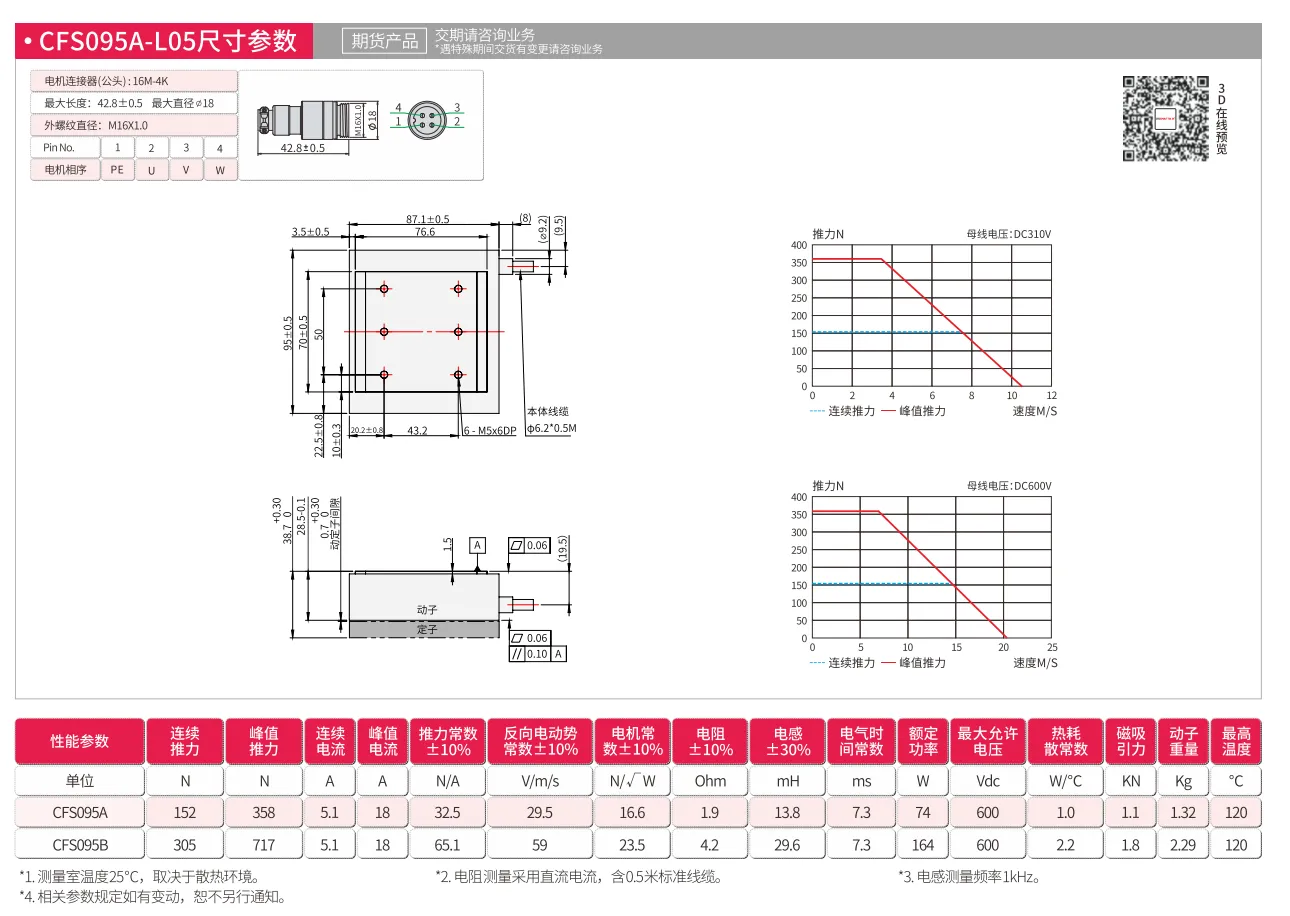

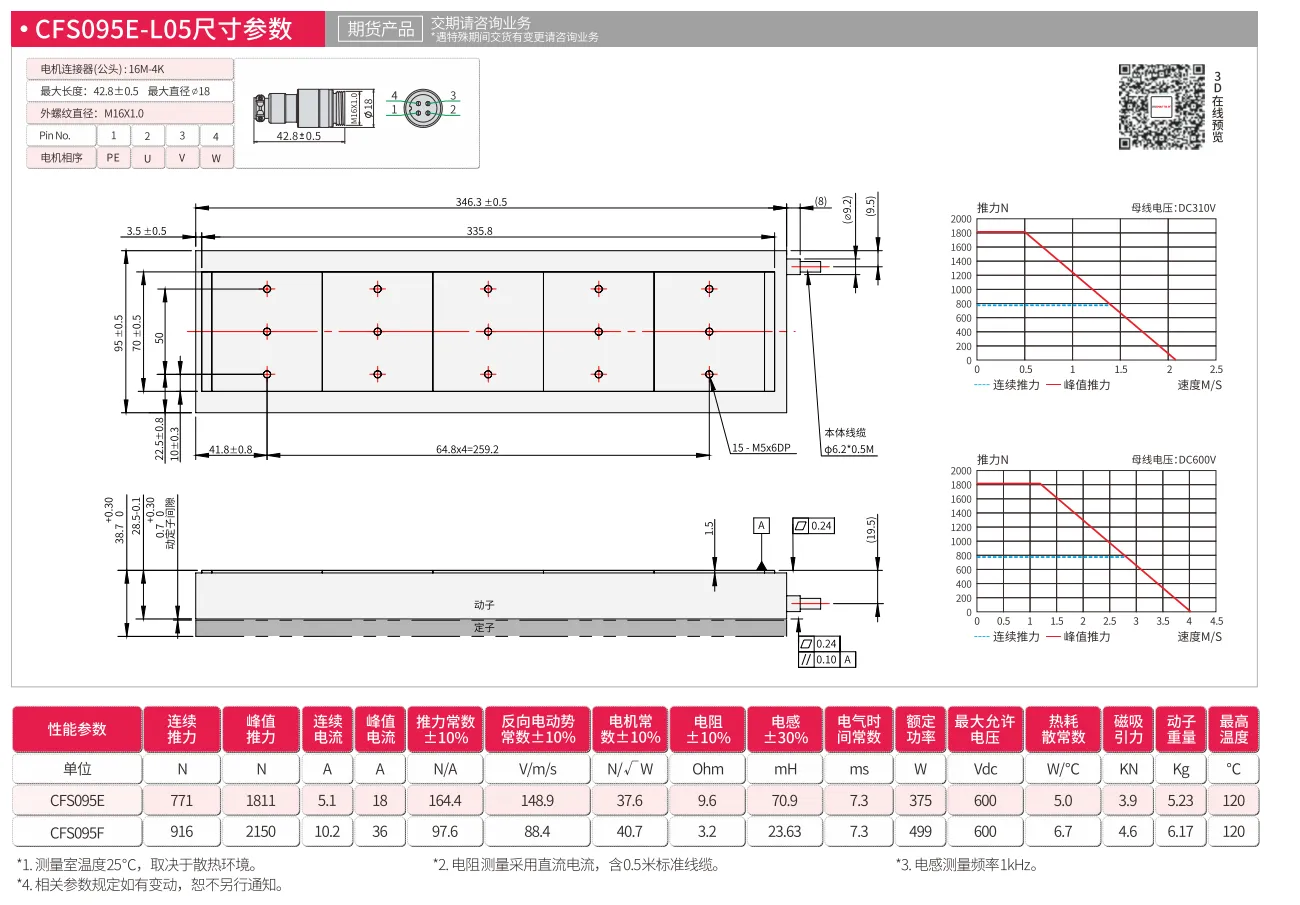

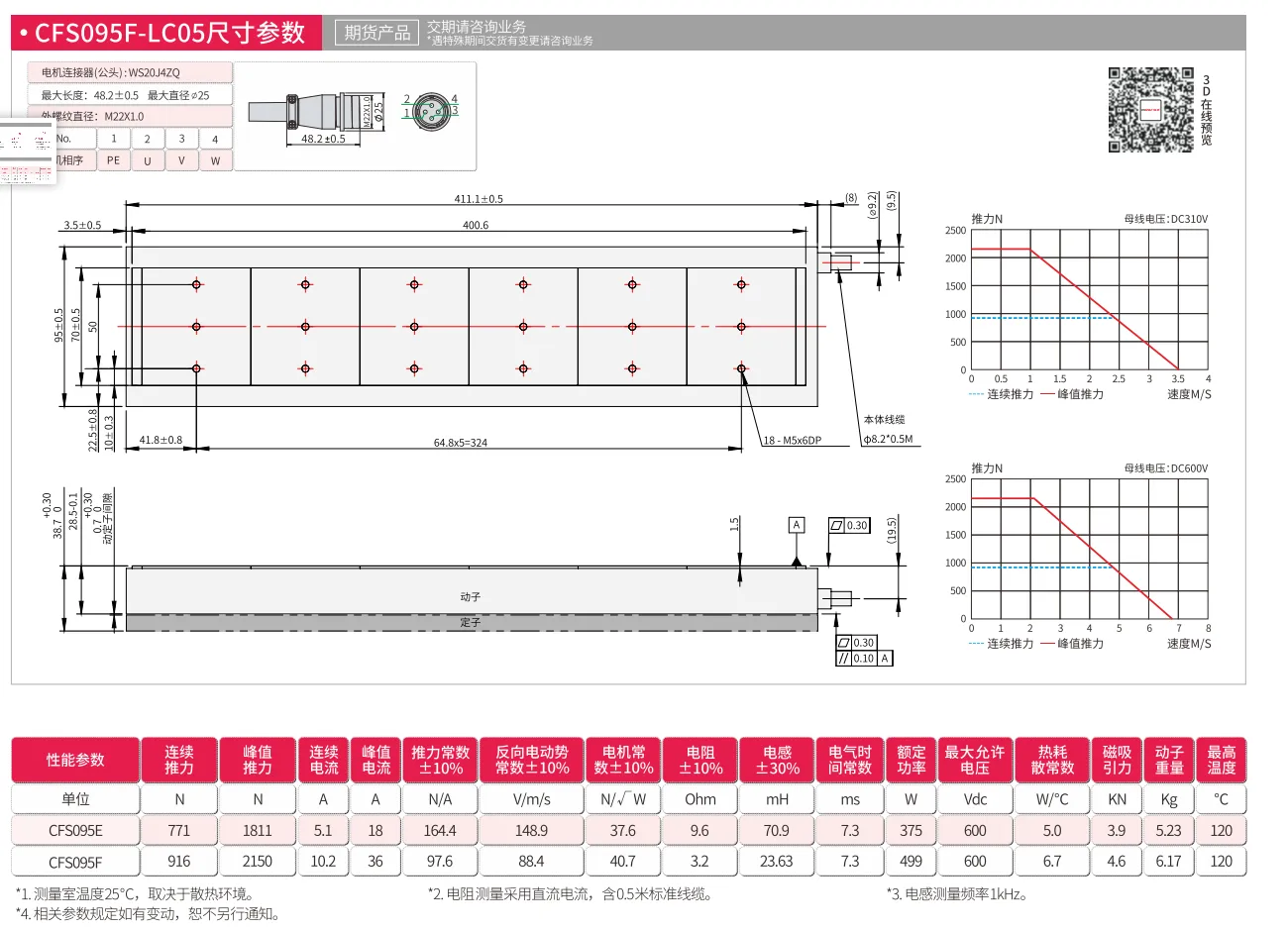

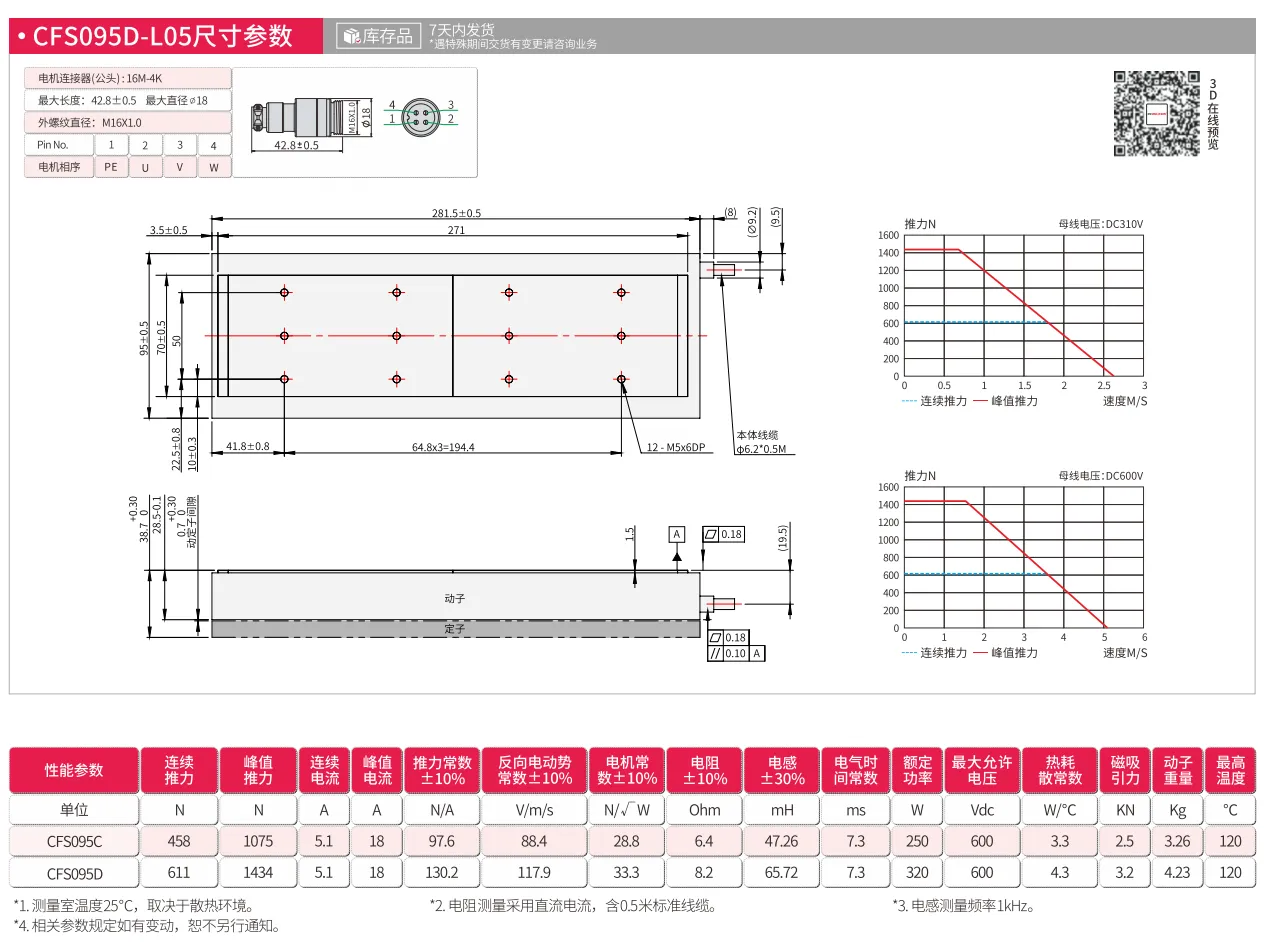

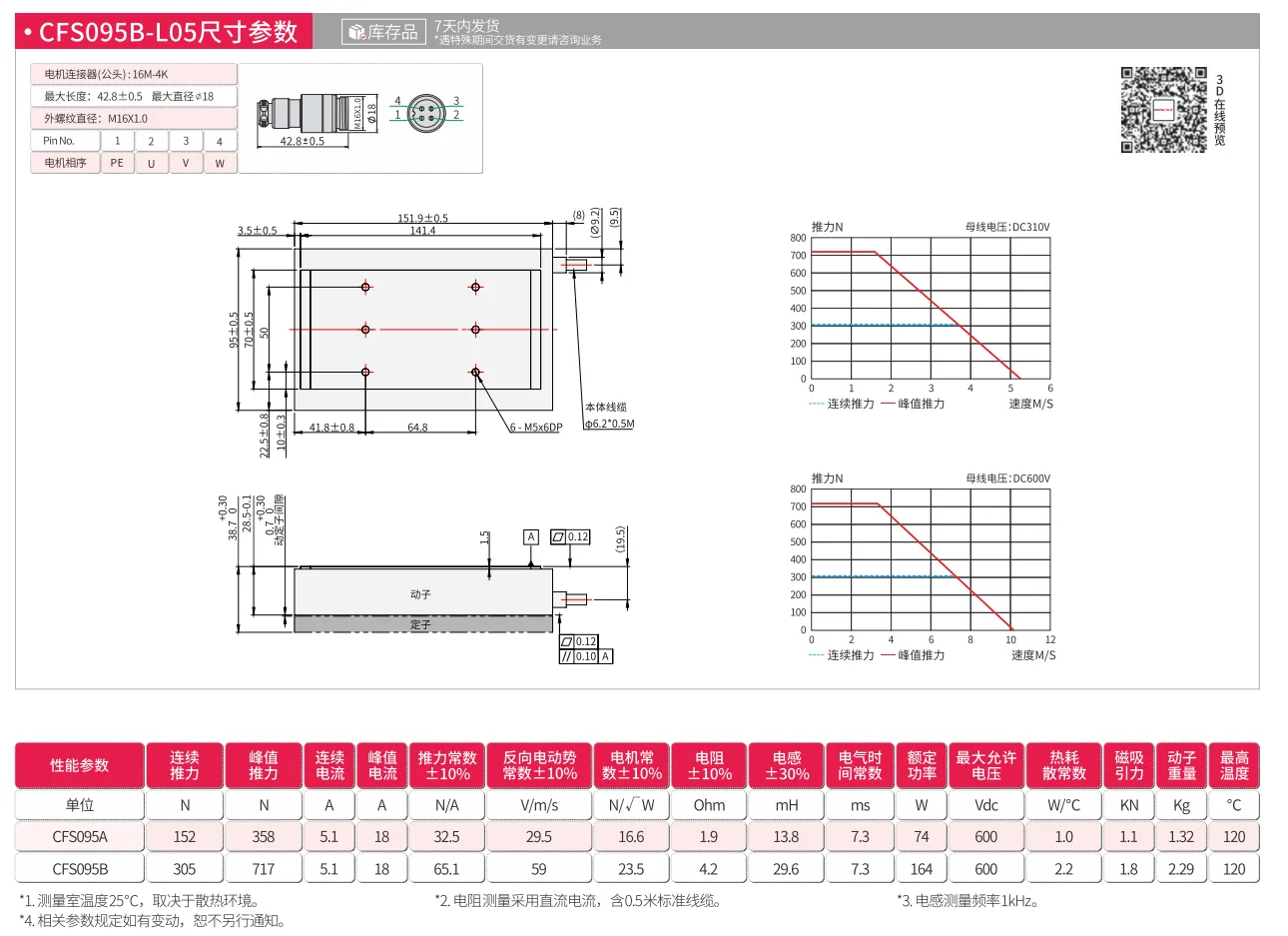

CFS095A
CFS095B
CFS095C
CFS095D
CFS095E
CFS095F
CFS095A
CFS095B
CFS095C
CFS095D
CFS095E
CFS095F
