CKM050

CKM050

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Stiffness

Applicable Industries

Semiconductor Industry Lithium Battery New Energy Industry Precision Laser Processing Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CKM
Series
  • CKM
050
Armature Width
  • 030:51mm 050:71mm
  • 100:121mm 150: 171mm
  • 200: 221mm
A
Armature Length
  • A: 112mm  B: 196mm
  • C: 280mm  D: 364mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LF05
Armature Lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
  • LF05:0.5m lead(4x20AWG),
    with WS20J4ZQ connecto
Stators order number rules
MKM
Series
  • MKM
050
Stator Width
  • 050: 75mm
L168
Stator Length
  • L168: 168mm
  • L252: 252mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MKM050-L168 168 75 10.8 1 4 42 5.0
MKM050-L252 252 75 10.8 2 6 42 5.0
Parameter configuration
Product Model CKM050A CKM050B CKM050C CKM050D CKM050E CKM050F
Armature Length(mm) 112 196 280 364
Continuous Thrust(N) 176 350 526 701
Peak Thrust(N) 396 791 1188 1581

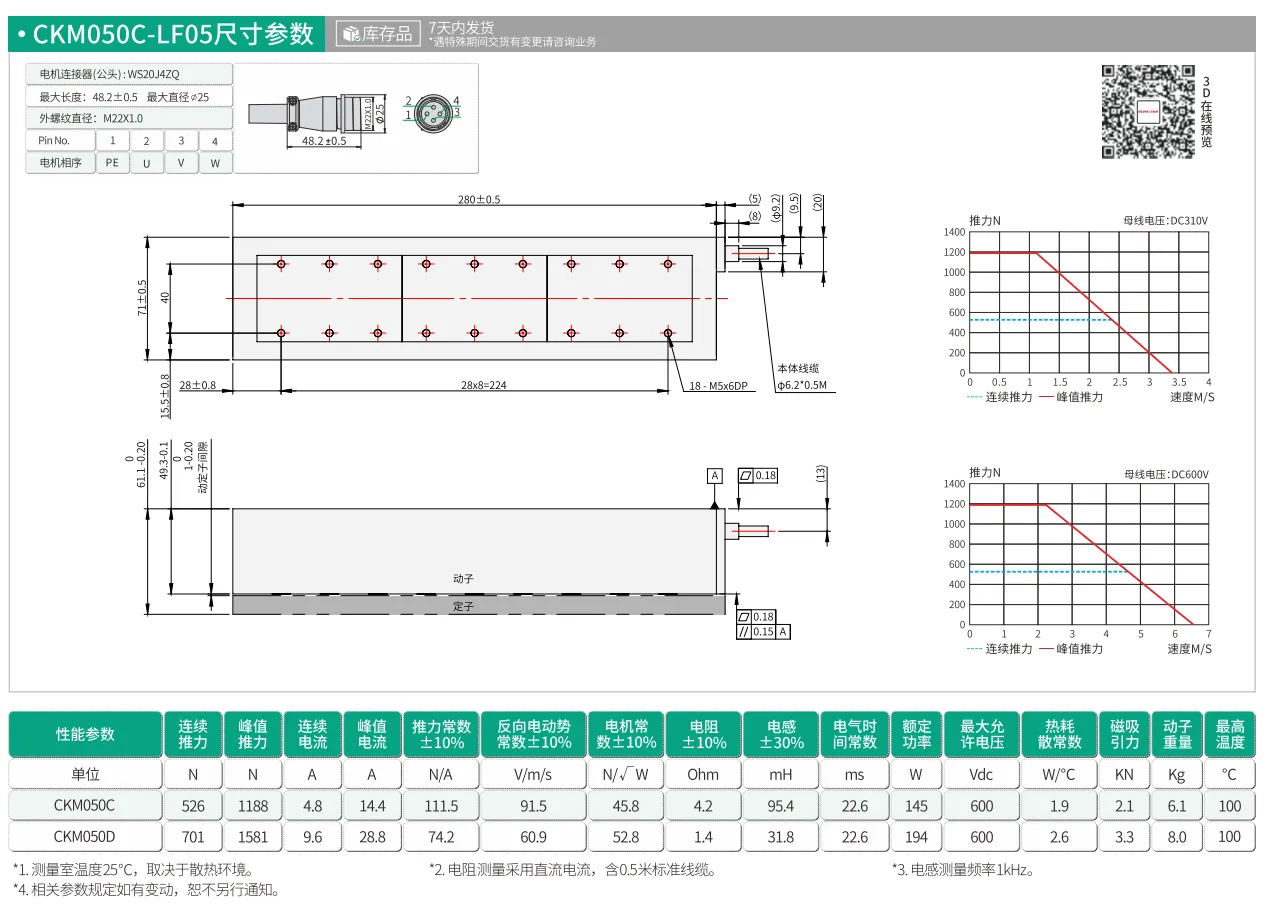

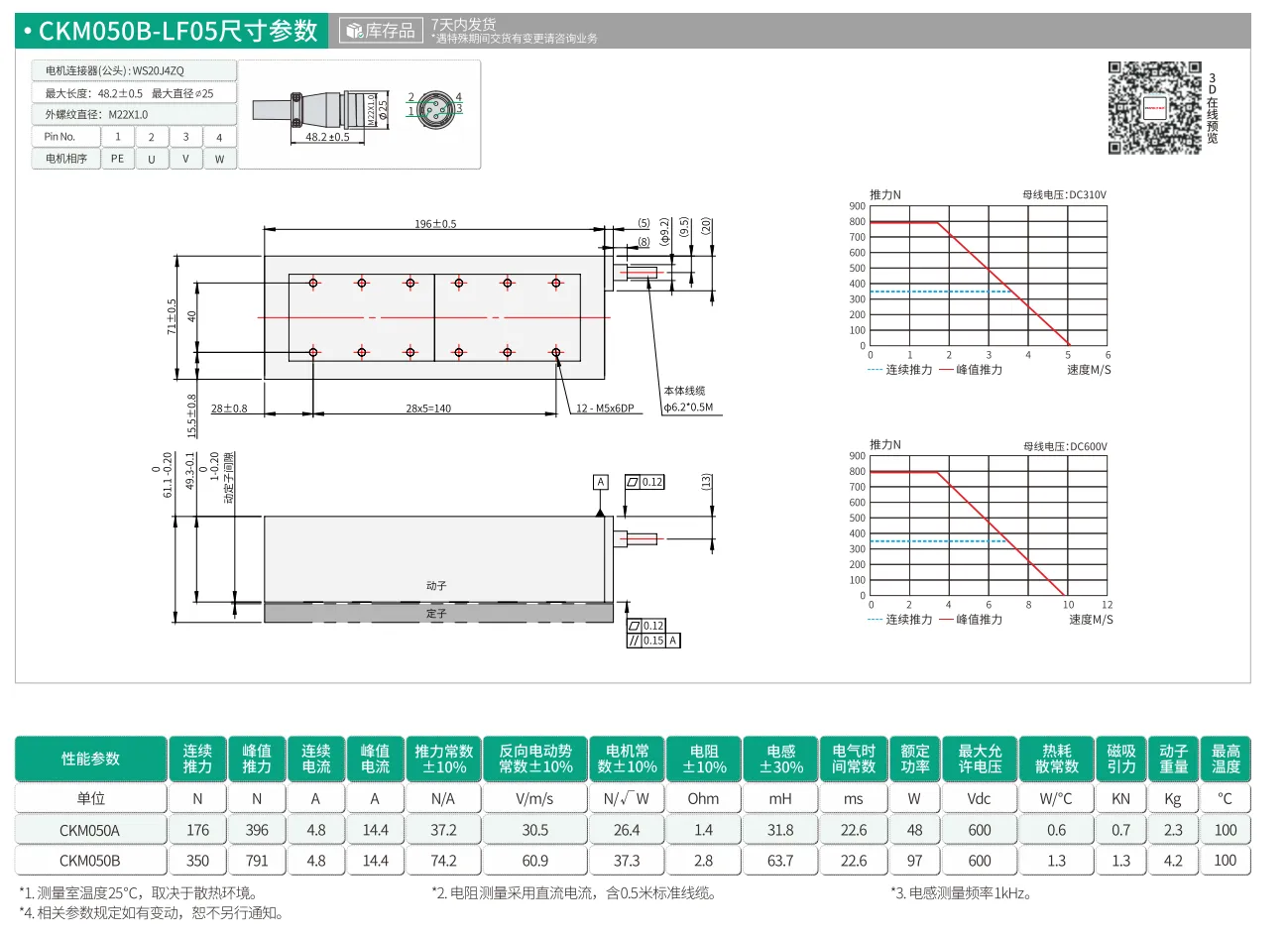

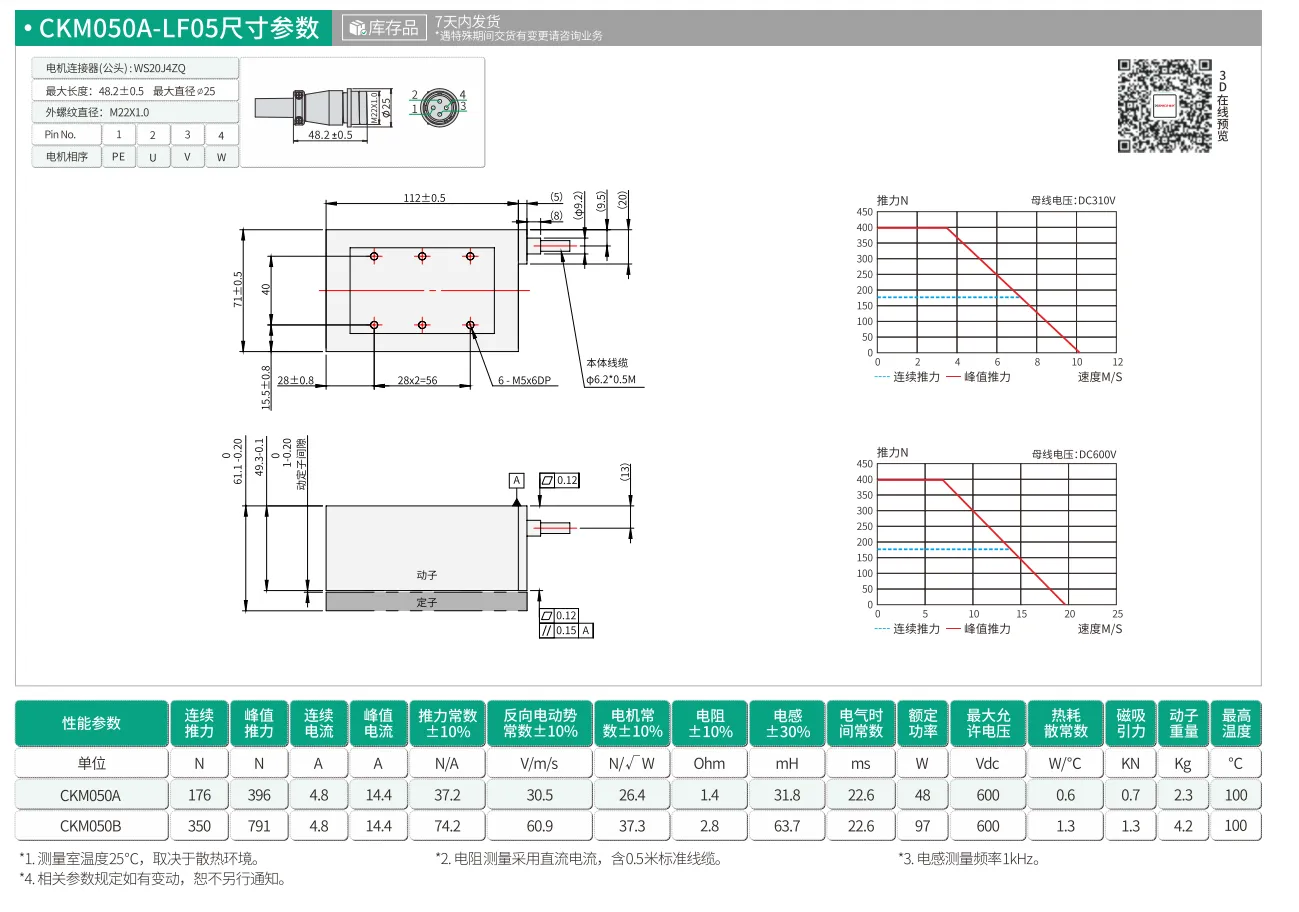

CKM050A
CKM050B
CKM050C
CKM050D
CKM050A
CKM050B
CKM050C
CKM050D
