CKM030

CKM030

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Stiffness

Applicable Industries

Semiconductor Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CKM
Series
  • CKM
030
Armature Width
  • 030:51mm 050:71mm
  • 100:121mm 150:171mm
  • 200:221mm
A
Armature Length
  • A: 112mm  B: 196mm
  • C:280mm D:364mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LF05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
  • LF05:0.5m lead(4x16AWG),
    with WS20J4ZQ connecto
Stators order number rules
MKM
Series
  • MKM
030
Armature Width
  • 030: 50mm
L168
Armature Lead
  • L168: 168mm
  • L252: 252mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MKM030-L168 168 50 10.8 3 8 42 3.2
MKM030-L252 252 50 10.8 5 12 42 3.2
Parameter configuration
Product Model CKM030A CKM030B CKM030C CKM030D CKM030E CKM030F
Armature Length(mm) 112 196 280 364
Continuous Thrust(N) 105 210 315 421
Peak Thrust(N) 238 474 713 948

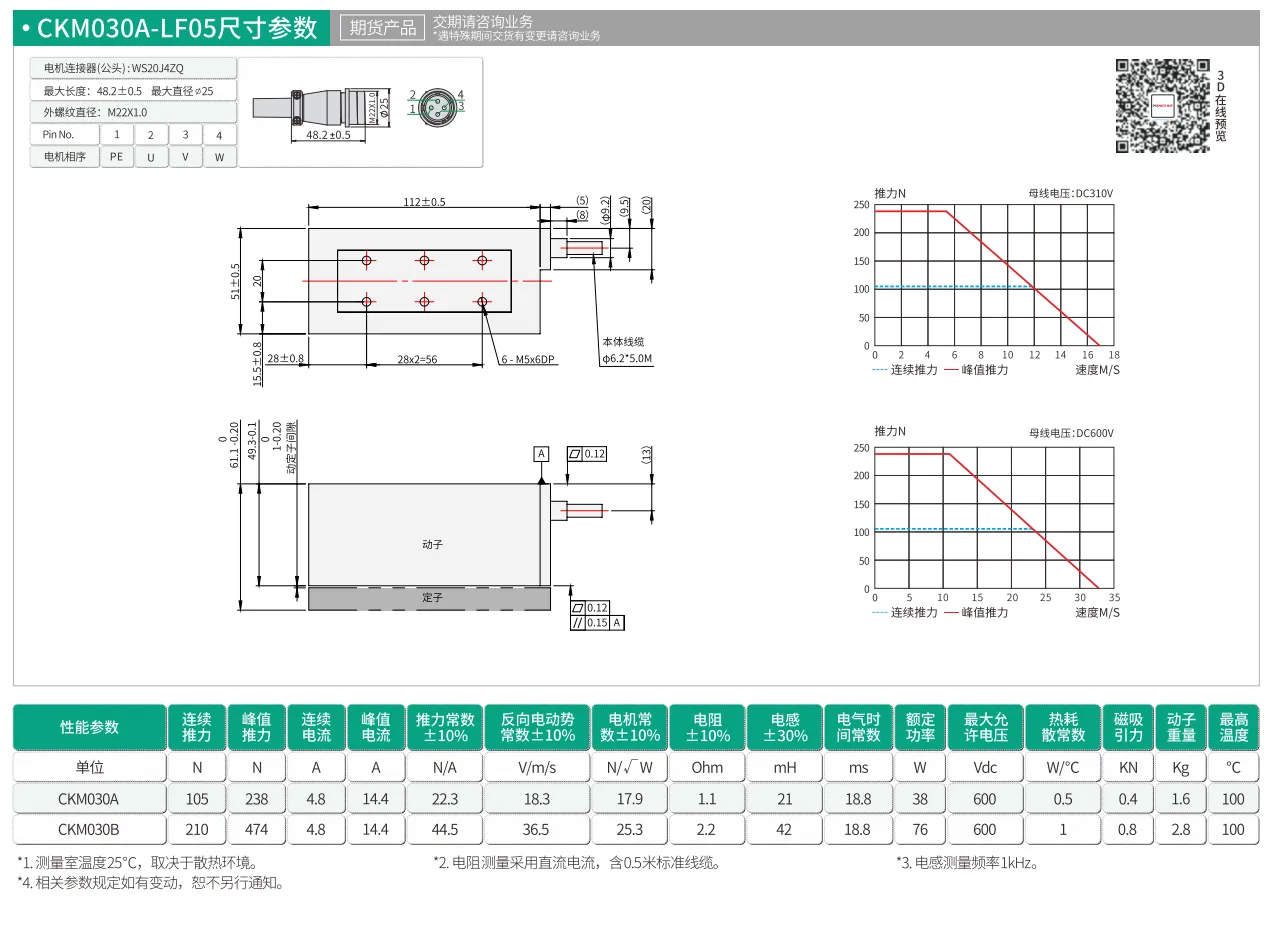

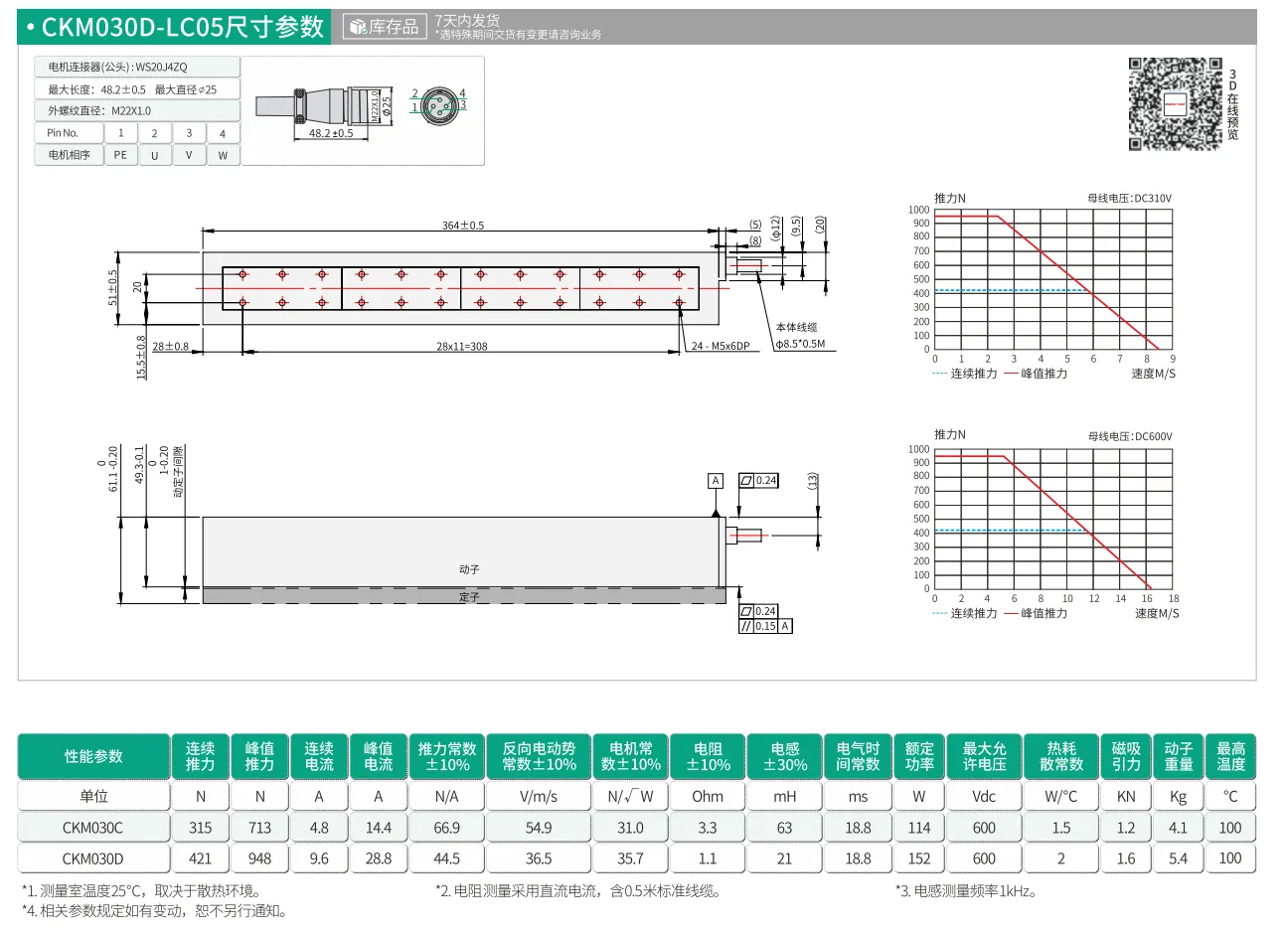

CKM030A

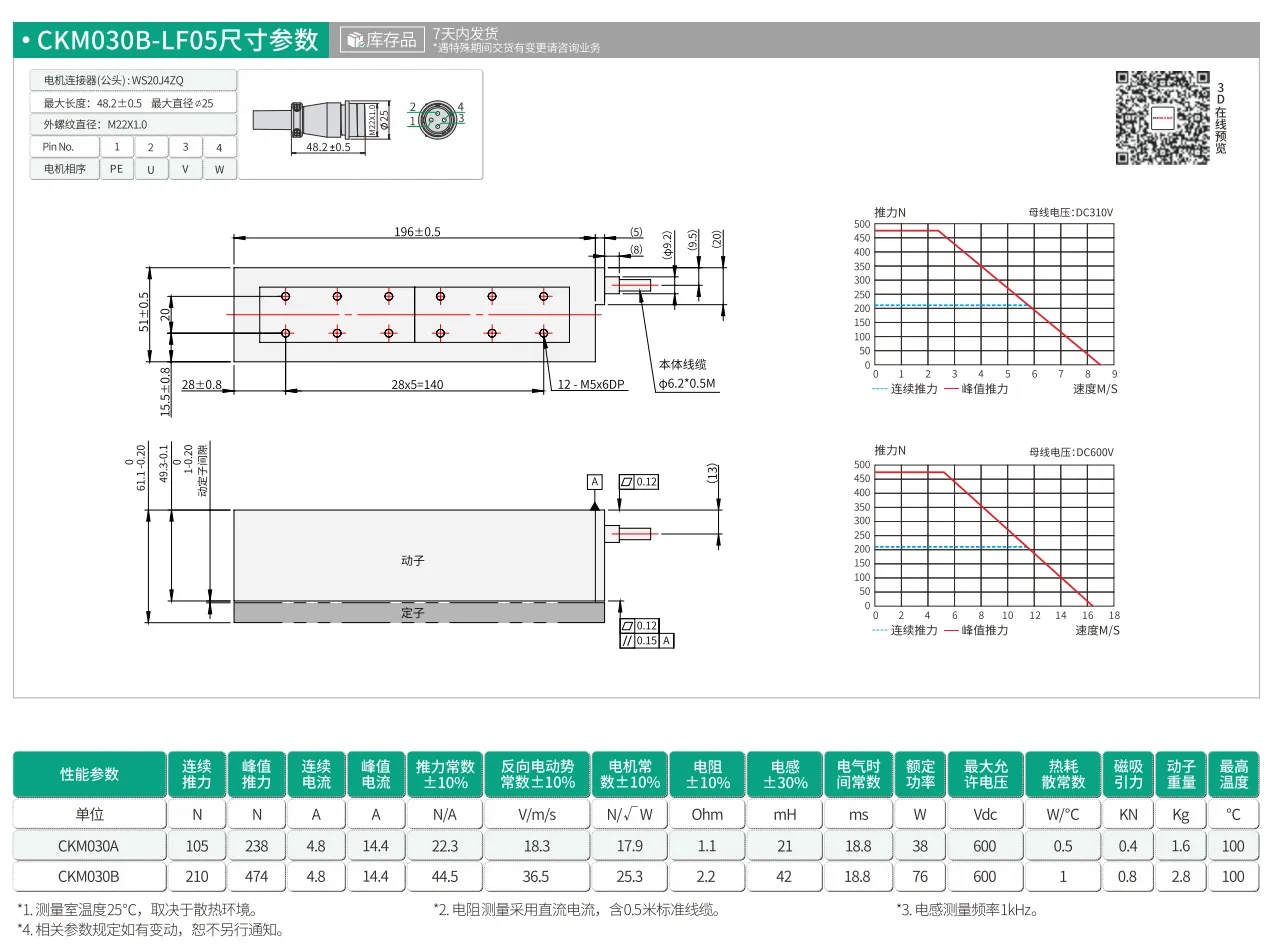

CKM030B

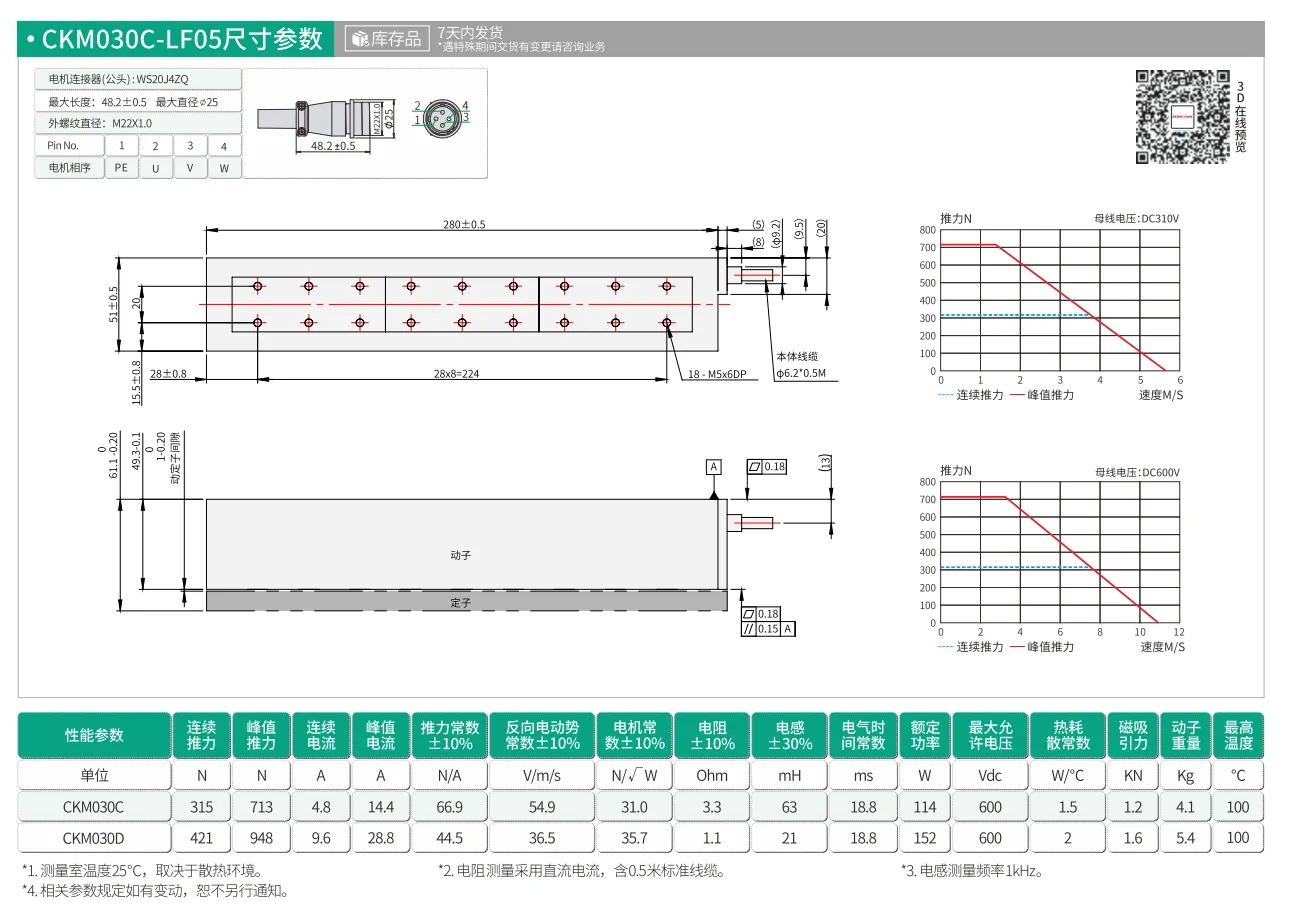

CKM030C
CKM030D
CKM030A
CKM030B
CKM030C
CKM030D
